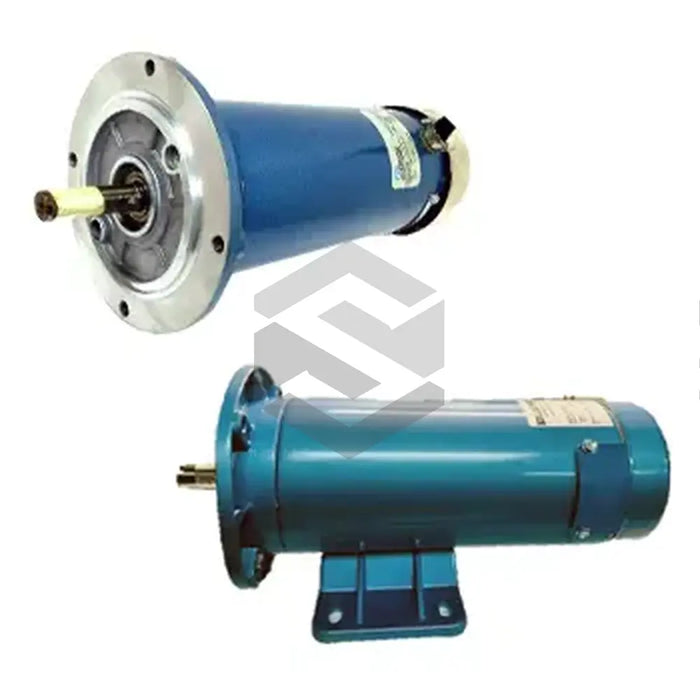

The SR3624-2691-7-71BM is a DC motor by Kollmorgen in the SR and SRF Permanent Magnet Motors series. This NEMA 42 frame motor with standard round mounting delivers a rated speed of 2000 RPM at 170 V and 1.5 A, offering 1650 oz-in holding torque (2-stack), 400 lbs axial shaft load and PD or PF encoder options, ideal for industrial automation.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Encoder Options
PD and PF (500 or 1000 LPR, 5 VDC)
Frame Size
NEMA 42
Holding Torque (1 Stack)
839 oz-in (5.92 Nm)
Holding Torque (2 Stack)
1650 oz-in (11.7 Nm)
Mounting Configuration
Standard Round
Phase Resistance (1 Stack)
0.16 Ohms
Phase Resistance (2 Stack)
0.12 Ohms
Rated Current/phase (1 Stack)
10.6 Amps
Rated Current/phase (2 Stack)
14.7 Amps
Rotor Inertia (1 Stack)
0.080 kg-m2 x 10-3
Rotor Inertia (2 Stack)
0.16 kg-m2 x 10-3
Shaft Loading, Axial Force
400 lbs (1780 N)
Shaft Loading, Radial Force
140 lbs (623 N)
Thermal Resistance (1 Stack, Mounted)
1.8 °C/Watt
Thermal Resistance (2 Stack, Mounted)
1.3 °C/Watt
