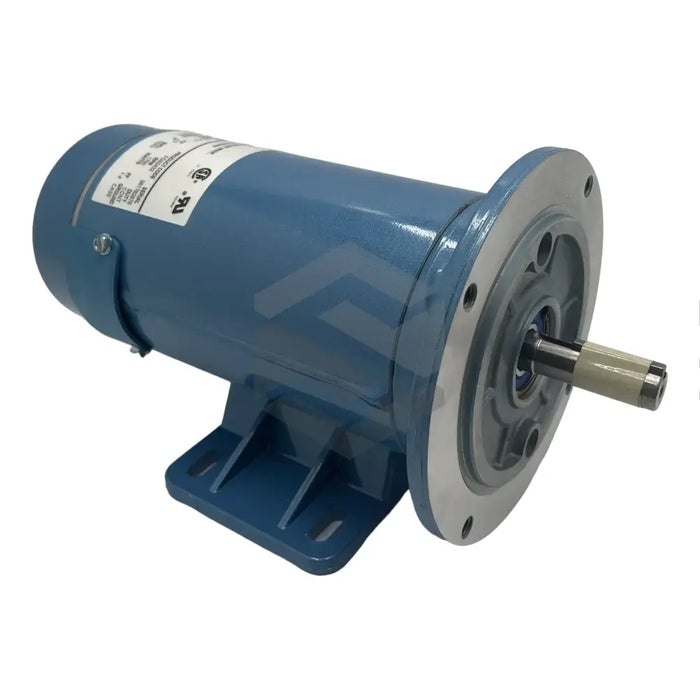

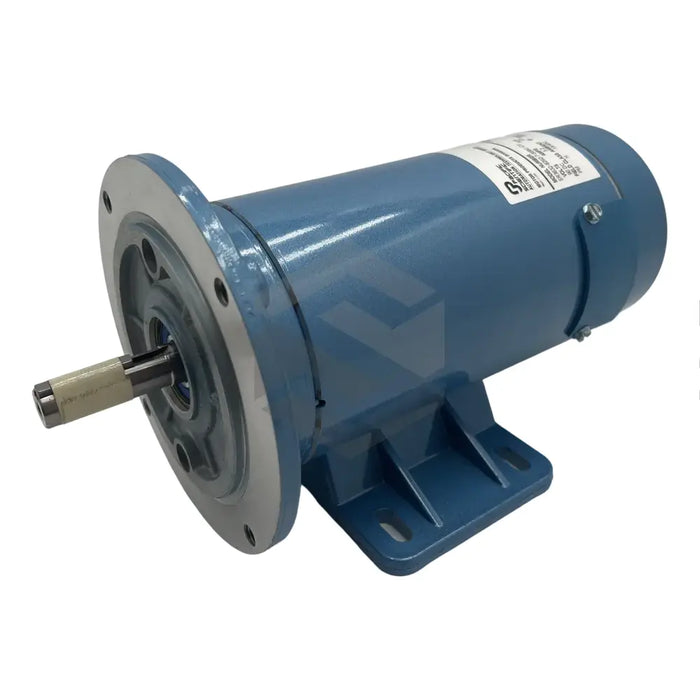

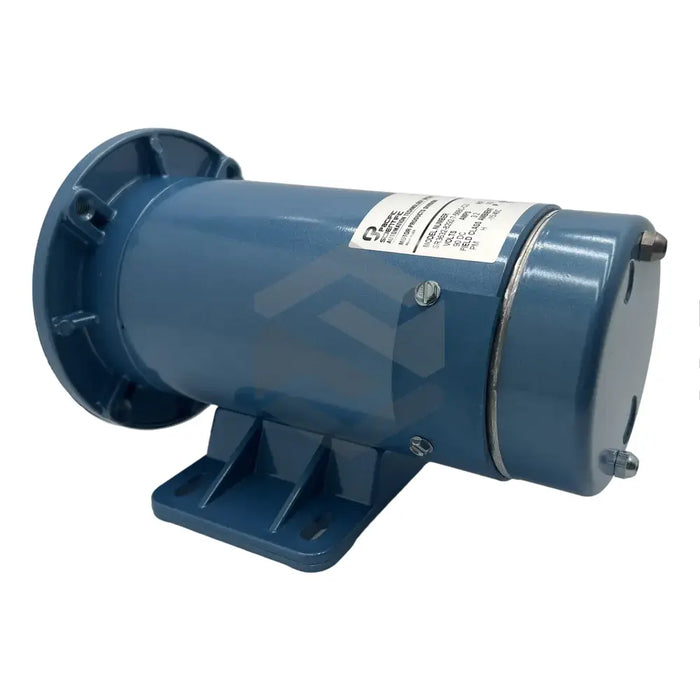

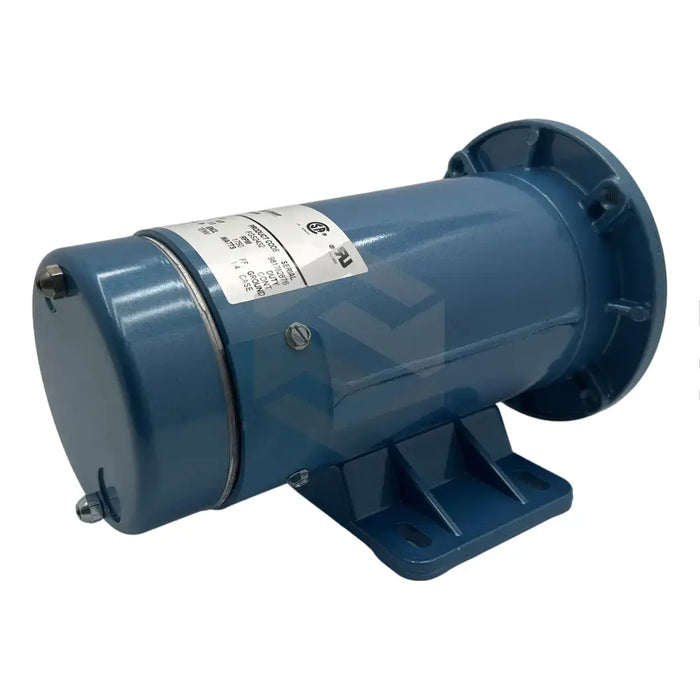

C image of SR3632-8292-7-56BC-CU | Main (Front Left)

SR3632-8292-7-56BC-CU

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The SR3632-8292-7-56BC-CU is a notable product from Pacific Scientific's Kollmorgen line, designed to enhance the efficiency and speed of industrial machines. The Permanent Magnet (PMDC) motor features a continuous rating current of 3.5 amps and a torque of 12.0 lb-in, with a peak current of 71.0 amps. Also notable is its 3.9 lb-in/A torque constant, 5 lb-in inertia, 1.8 Ohm resistance, and 6.6 millihenries inductance. Weighing 21 lbs and measuring 10.13 inches in length, the SR3632-8292-7-56BC-CU motor features Class H insulation with a removable NEMA C face. The tachometer adapter kit enables speed checks, and is specific to certain models, with the 40PA57-36/37-TENV-S kit fitting this TENV motor enclosure model. With requirements of either 90 or 180 DC for the NEMA standards SCR rate motor, this environmentally-protected model is designed for wash-down duty, explosion proof, and NEMA or metric mounting.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific Kollmorgen

Product Name

SR3632-8292-7-56BC-CU

Motor Type

Permanent Magnet DC Motor

Continuous Rating Current

3.5 amps

Continuous Rating Torque

12.0 lb-in.

Peak Current

71.0 amps

Torque Constant

3.9 Ib-in./A

Inertia

5 Ib-in

Resistance

1.8 Ohms

Inductance

6.6 millineries

Weight

21 lbs

Total Length

10.13 inches

Insulation Class

Class H

Mounting

NEMA C face with removable face

Compatible Kit

40PA57-36/37-TENV-S small tachometer adaptor kit

Voltage Requirement

90 and 180 DC for NEMA standards SCR rate motor

Extra Features

Environmentally protected models with wash-down duty and explosion proof, NEMA or metric mounting
