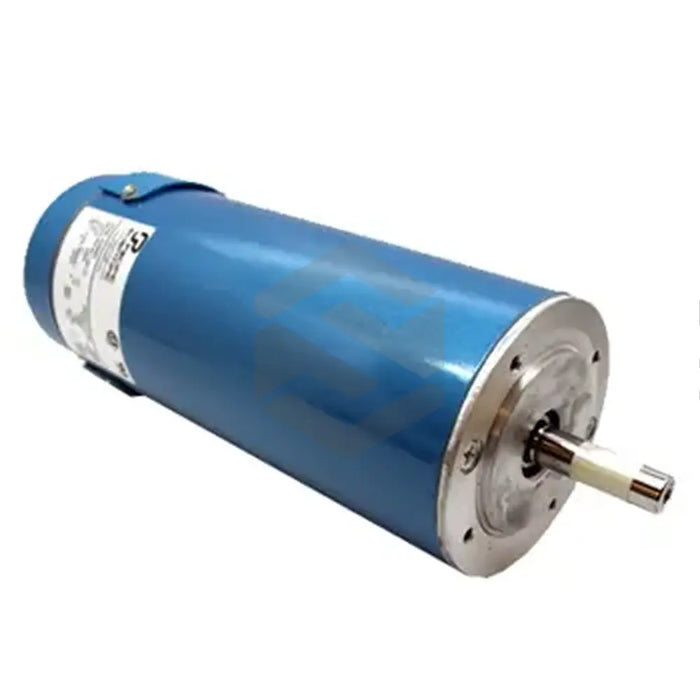

P image of SR3642-4822-7-56HC-CU

SR3642-4822-7-56HC-CU

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The SR3642-4822-7-56HC-CU is a continuous-duty DC motor, expertly crafted by Pacific Scientific. As part of the Kollmorgen SR series, it features a NEMA C face with a removable base and a factory-assigned non-vented TENV style enclosure in a 56C frame. Being a SCR-rated motor with permanent magnets, it is compact, lightweight, and efficient, with a linear speed/torque curve. Operating at a speed of 1,750 RPM, it boasts a power rating of 0.5HP, continuous current rating of 4.7A and voltage rating of 90VDC. With supreme construction and anti-cogging property, high overcurrent capacity, and polyester impregnated armature, it ensures smooth operation at low speeds. It exhibits four 3/8-16 UNC-2B mounting holes for easy installation, with a size of 12.1 inches and weight of 27lbs. Upholding a Class H insulation, UL Recognition, CE Mark, and CSA Certification, this DC motor finds extensive application in submarines, surgical robots, and metrology and drilling in space and O&G industries.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Code

SR3642-4822-7-56HC-CU

Type

Continuous duty DC motor

Key Features

NEMA C Face, Removable Base

Enclosure Configuration

Factory assigned non-vented TENV style

Frame

56C

Operating Speed

1,750 RPM

Construction

Permanent Magnets

Additional Features

Rugged, Quality Construction, Reliable Operation

Continuous Current Rating

4.7A

Power Rating

0.5HP

Voltage Rating

90VDC

Torque

18lb-in continuous, 4.2lb-in/A constant

Peak Current

74A

Inertia

6.54.2lb-in

Mounting Holes

Four 3/8-16 UNC-2B

Size

12.1 inches, Diameter: 6.5 inches

Weight

27lbs

Class

Class H insulation

Certifications

UL Recognized, CE Marked, CSA Certified

Application

Surgical robots, submarines, ships, space and O&G metrology and drilling
