SRF3650-4823-84-5-56BC-CU

Original price $3,535.00 - Original price $3,535.00
Original price
$3,535.00
$3,535.00 - $3,535.00
Current price $3,535.00
In Stock, Ships Today
Request a quote

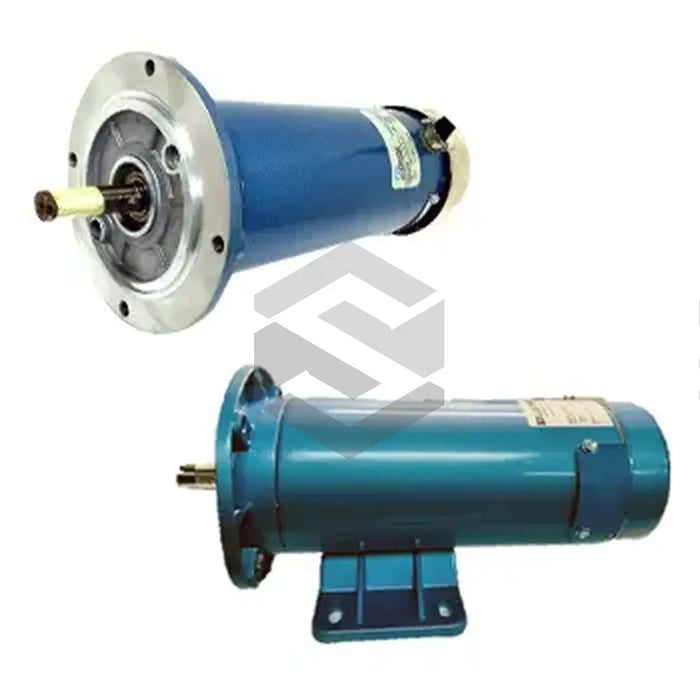

The SRF3650-4823-84-5-56BC-CU is a permanent magnet DC motor from Pacific Scientific's PMDC series. This motor, which adheres to SCR Rated NEMA standards, combines robust performance with a small form factor, weighing only 30 pounds and measuring 13.25 inches in length. It is characterized by its high torque and low resistance, offering a continuous current of 6.9 amperes and peak current of 81.0 amperes, while also delivering a continuous torque of 27 pounds per inch. This balance provides rapid acceleration and deceleration capabilities. The motor has a power output of ¾ HP, equivalent to 559.28 watts, with an inertia of 7.8 pounds per inch and inductance of 3.7mH. It also benefits from a NEMA 56C mount and a TEFC enclosure for added protection and durability.
30 Day Warranty
Technical Specifications
  • Product Series: SRF3650-4823-84-5-56BC-CU
  • Product Code: FGS2749
  • Product Type: Permanent Magnet DC Motor
  • Standard Compliance: SCR Rated NEMA
  • Length: 13.25 inches
  • Weight: 30 pounds
  • Continuous Current: 6.9 amperes
  • Peak Current: 81.0 amperes
  • Continuous Torque: 27 pounds per inch
  • Resistance: 0.7 ohms
  • Power: ¾ HP (559.28 watts)
  • Inertia: 7.8 pounds per inch
  • Inductance: 3.7mH
  • Mounting: NEMA 56C
  • Enclosure: TEFC
