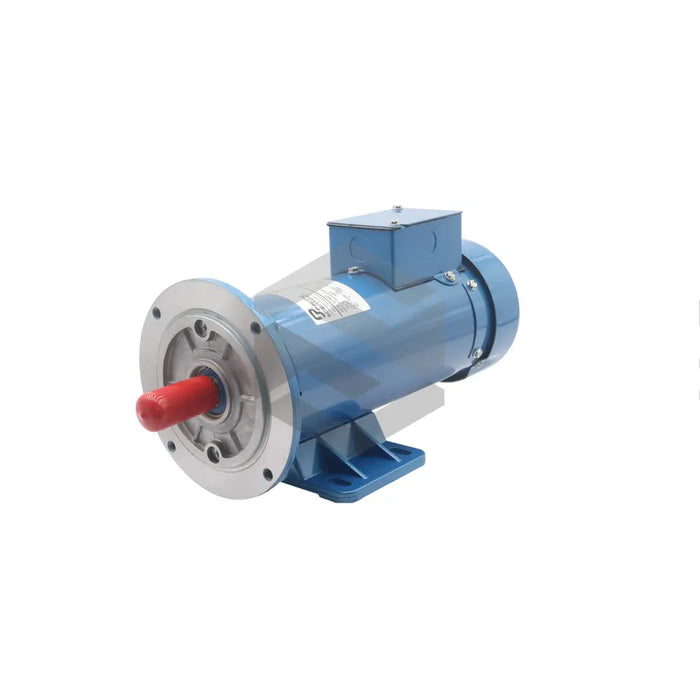

C image of SRF3752-4984-84-5-56BC-CU | Main (Front Left)

SRF3752-4984-84-5-56BC-CU

by Pacific Scientific
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The SRF3752-4984-84-5-56BC-CU is a Permanent Magnet DC Motor developed by Pacific Scientific as part of the reliable SRF series of brushless motors. Integrated with a typical NEMA Frame of classification 56C, this TEFC encased motor operates on a nominal current value of 4.6 amps, with a peak current reaching 41 amps. It delivers a continuous torque of 36 lb-in and 8.2 lb-in/A torque constant. Rated at 180 volts and 1 HP, the motor weighs 29 pounds and extends to 13.25 inches in length, making it one of the heavier models in the series. Its adherence to industry-standard certifications including CE, UL, and CSA, combined with its 'class-H’ laminated insulation, ensures safety and longevity. Being both robust and maintenance-free, these motors see a wide range of industrial use in machine tools, power tools, fans and blowers, pumps, and other handling equipment, in addition to niche applications in robotics.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Code

SRF3752-4984-84-5-56BC-CU

Manufacturer

Pacific Scientific

Motor Type

Permanent Magnet DC-Motor Series

Industry Use

Multiple Applications

Frame

NEMA 56C

Enclosure

TEFC

Nominal Current

4.6 Amps

Peak Current

41 Amps

Torque Constant

8.2 lb-in/A

Continuous Torque

36 Lb-in

Voltage

180 Volts

Horsepower

1 HP

Length

13.25 in

Weight

29 pounds

Certification

CE, UL, CSA

Insulation

Class-H

Noise Level

Low

Robustness

High
