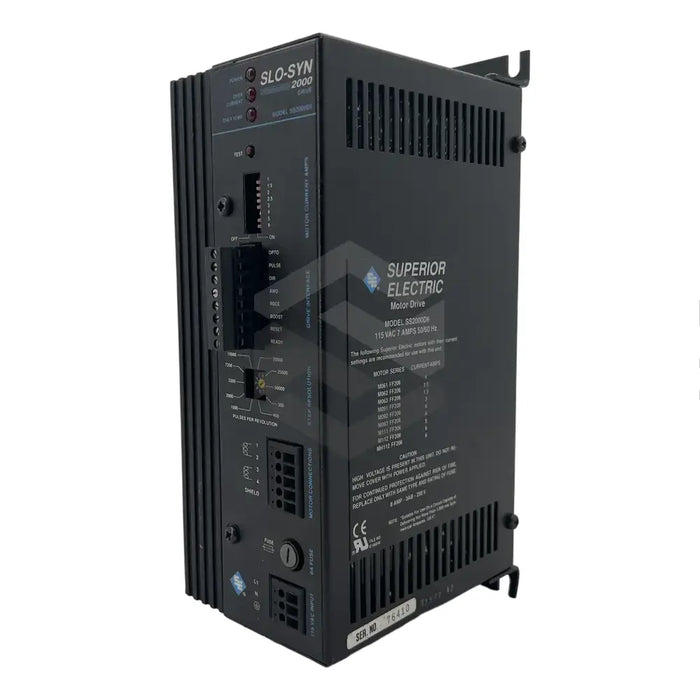

C image of SS2000D6 | Main (Front Left)

SS2000D6

by Kollmorgen
$1,189.10 - $5,305.13
$1,189.10
$1,189.10 - $5,305.13
$1,189.10
The product in focus is the Kollmorgen SS2000D6, which is a variable-speed, bipolar, two-phase chopper drive, integrating MOSFET and IGBT technologies. This versatile drive can be configured to operate a stepper motor in various step modes from full to as minuscule as 1/125 microsteps, with the upper speed limit reaching 10,000 full steps per second. It features isolated control signals, AC line filter, MOV, undervoltage, overvoltage and short-circuit protection as well as a self-test function. While electromagnetic interference may occur due to its state-of-the-art electronics, this UL listed device necessitates a solid grounding and separate wiring for signal power. Installation requires vertical mounting and a temperature-controlled environment to prevent the casing from exceeding 158 degrees Fahrenheit. Measuring 277 x 93 x 141 millimeters, it operates within an AC input range of 90 to 132 Volts and comes compatible with specific motor models only.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type

Kollmorgen SS2000D6

Drive Type

Bipolar, Speed Adjustable Two-Phase Chopper

Supported Microsteps

Full, Half, 1/5, 1/10, 1/16, 1/36, 1/50, 1/100, 1/125

Maximum Running Speed

10,000 Full Steps Per Second

Features

AC Line Filter and MOV, Unlatched Undervoltage and Transient Overvoltage Protection, Latched Short-Circuit Protection, Self-Test Function

Certification

UL Listed

Installation

Vertical

Dimensions

277 X 93 X 141 mm

Weight

6.5 Pounds

AC Input Range

90 to 132 Volts AC (50/60 Hertz)

AC Input Current

7 Amps

Fuse Rating

250 Volts / 8 Amps

Drive Heat Dissipation

50 Watts

Compatible Motors

KML060 – KML093 and M061 – MH112.
