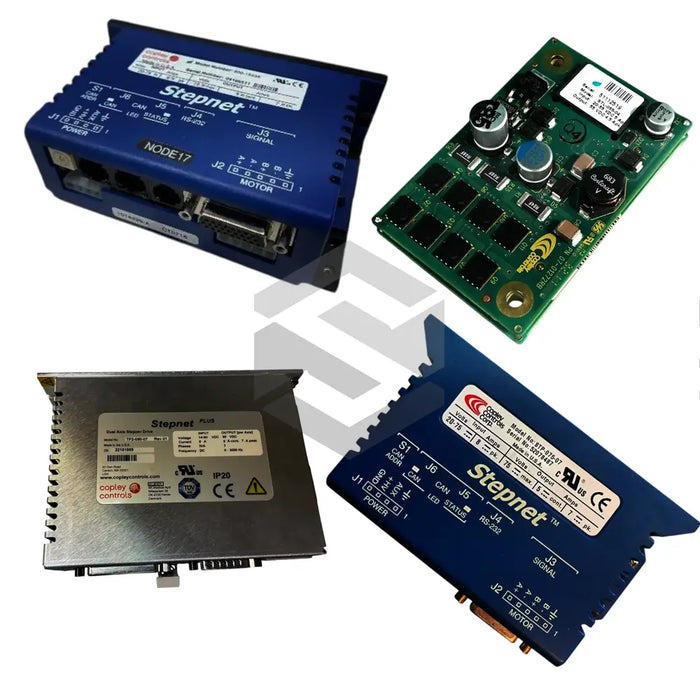

S image of STP-075-10

STP-075-10

by Copley Controls
$1,262.42 - $1,262.42
$1,262.42
$1,262.42 - $1,262.42
$1,262.42

Available, Shipping Varies

The Copley Controls STP-075-10 amplifier from the Stepnet Compact Drives series is a compact industrial motion control solution featuring dual MOSFET H-bridges with a 15 kHz PWM output, supporting continuous output current of 10 Adc (7 Arms, sinusoidal). It accepts an input power range of +20 to +75 Vdc with transformer isolation and offers 12 digital inputs and 4 digital outputs plus an RS-232 communication port (9600–115200 Baud) and optically isolated CANopen communication ports. Measuring 5.35 x 3.29 x 1.65 inches and weighing 0.94 lb, it provides robust protection with HV overvoltage and undervoltage safeguards and complies with EN 55011, EN 61000-6-1 and UL 508C, making it ideal for precise, reliable industrial automation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Agency Conformance

EN 55011, EN 61000-6-1, UL 508C

Canopen Communication Ports

Two, optically-isolated

Digital Inputs Quantity

12

Digital Outputs Quantity

4

Dimensions

5.35 x 3.29 x 1.65 inches (135.9 x 83.5 x 41.8 mm)

Drive Status Led

Green/Solid, Green/Slow-Blinking, Red/Solid, Red/Blinking

Input Power Hv Range

+20 to +75 Vdc, transformer-isolated

Motor Connections

Motor A+, A-, B+, B- outputs to 2-phase stepper motor

Output Power Continuous Current

10 Adc (7 Arms, sinusoidal)

Output Power Peak Current

10 Adc (7 Arms, sinusoidal)

Protections

HV overvoltage > +91 Vdc, HV Undervoltage < +20 Vdc

Pwm Outputs

Dual MOSFET H-bridges, 15 kHz

Reference Inputs

Profile Position, Profile Velocity, Interpolated Position

Rs-232 Communication Port

9600 to 115200 Baud

Weight

Amplifier 0.94 lb (0.43 kg); Heatsink 0.4 lb (0.15 kg)
