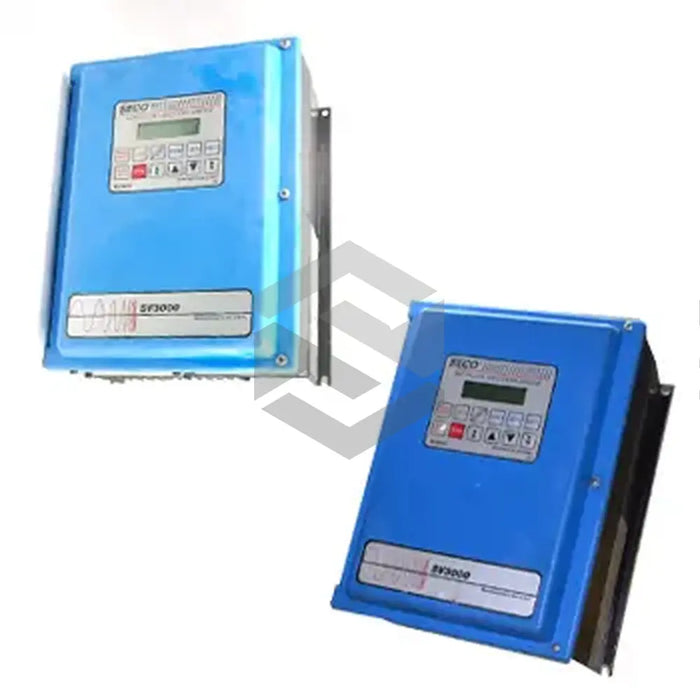

SV3405-00000

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message
The Kollmorgen SV3405-00000 is a technologically advanced flux vector drive, part of the renowned SV3400 series. It houses a robust microprocessor to handle intricate operations and incorporates top-tier features such as output short circuit protection and ground fault protection. It permits current limiting adjustments up to 150% for an utmost duration of 60 seconds. The drive operates on a 3 x 460 VAC power source and controls a 5 HP three-phase AC motor. With a power input factor of 0.95, this model has a base speed of 1800 rpm, topping at 3600 rpm. Weighing 125 kg and dimensions of 7.25 x 19.94 x 15, its compact design isn't hiding its power. Fitted with a keyway locked shaft, the drive also provides comprehensive monitoring of drive parameters and the last three fault indications. Available globally, SV3405-00000 is a leading solution for power and control in complex operations.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Kollmorgen

Product Type


Flux Vector Drive

Model Number


SV3405-00000

Series


SV3400

Output Short Circuit Protection


Yes

Ground Fault Protection


Yes

Current Limiting Adjustment


Up to 150% for 60 seconds

Power Source


3 x 460 VAC

AC Line Input


10.4 Amperes

Power


8.3 KVA

Motor Type


5 HP Three-Phase AC Motor

Motor Current Consumption


7.6 A

Motor Power


6 KVA

Input Power Factor


0.95

Base Speed


1800 rpm

Top Speed


3600 rpm

Weight


125 kg

Installation Method


Screw Size and Torque

Dimensions


7.25 x 19.94 x 15 inches

Shaft Locking Method


Keyway

Keyway Size


0.25 x 0.25 x 1.75 inches

Fault Indication


Last three faults with catalog

Worldwide Supply


Yes
