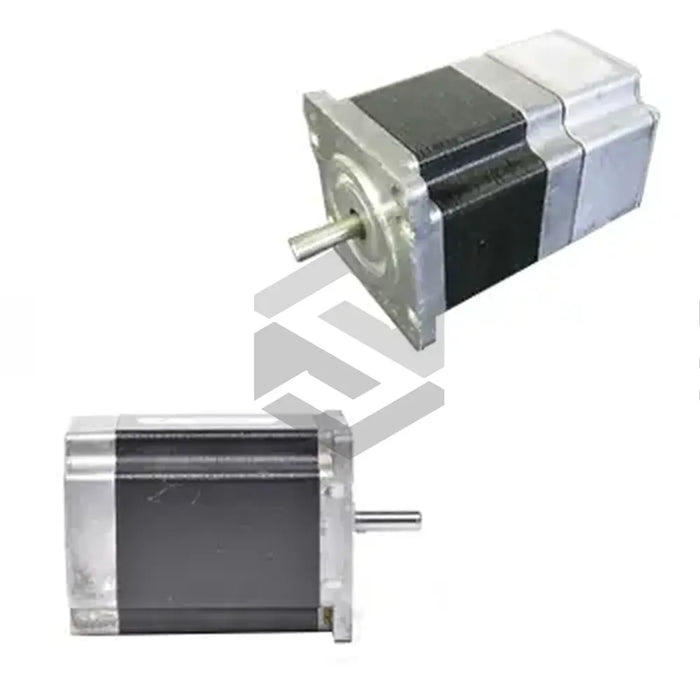

The Pacific Scientific T23NRHK-LNN-NS-00 is a high-performance NEMA 23 stepper motor in the T High Torque Motors series offering 3.36 Nm holding torque, 1.8° step angle and 3.0 A current per phase. Rated at 2.83 V, weighs 1.16 kg with 410 g-cm² rotor inertia, ideal for precision applications.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Current/phase
3.0 A
Holding Torque
3.36 Nm (475 oz-in)
Inductance/phase
3.0 mH
Motor Frame Size
NEMA 23
Mounting
Front Face
Number Of Leads
8
Resistance/phase
0.95 Ohms
Rotor Inertia
410 g-cm²
Shaft Diameter
6.35 mm
Shaft Length
20.6 mm
Step Angle
1.8°
Type
Stepper Motor
Voltage
2.83 V
Weight
1.16 kg
