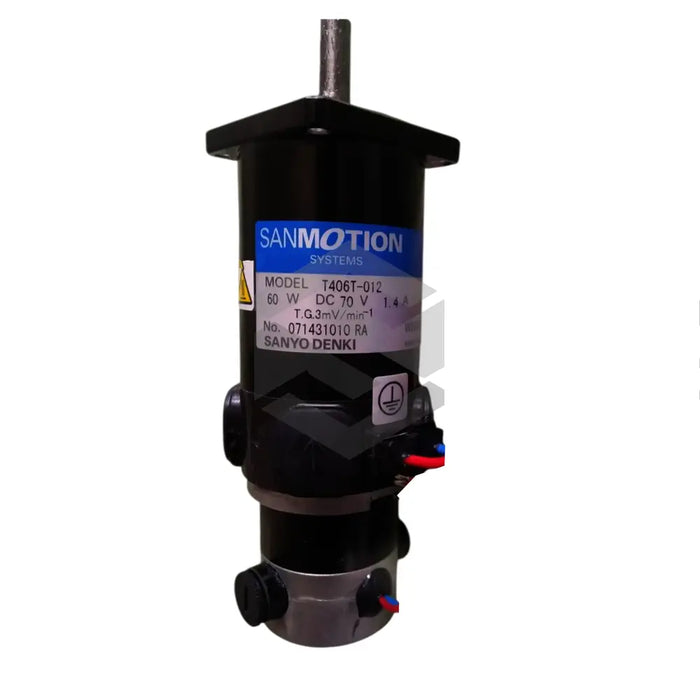

The T406-012 from Sanyo Denki offers a rated output of 0.06 kW and a motor flange size of φ41 mm. Part of the T SANMOTION Servo Motors series, this servo motor operates at a rated speed of 3000 min-1 and features an IP43 protection rating.
It delivers a peak stall torque of 1.2 N·m, a continuous stall torque of 0.20 N·m, and reaches a maximum speed of 5000 min-1. The motor weighs 0.5 kg and is equipped with a 1000 mm lead wire.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Connection
Lead wire
Continuous Stall Torque[n·m]
0.20
Lead Wire Length[mm]
1000
Maximum Speed[min-1]
5000
Motor Flange Size[mm]
φ41
Oil Seal
No
Output Shaft
D-shaped
Peak Stall Torque [n·m]
1.2
Protection Rating
IP43
Rated Armature Voltage[v]
70
Rated Output[kw]
0.06
Rated Speed[min-1]
3000
Rotor Inertia [×10-4kg·m2]
0.108
Servo Motor Mass[kg]
0.5
Tachometer Generator
No
