S image of TBM 1.1-20/115V

TBM 1.1-20/115V

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

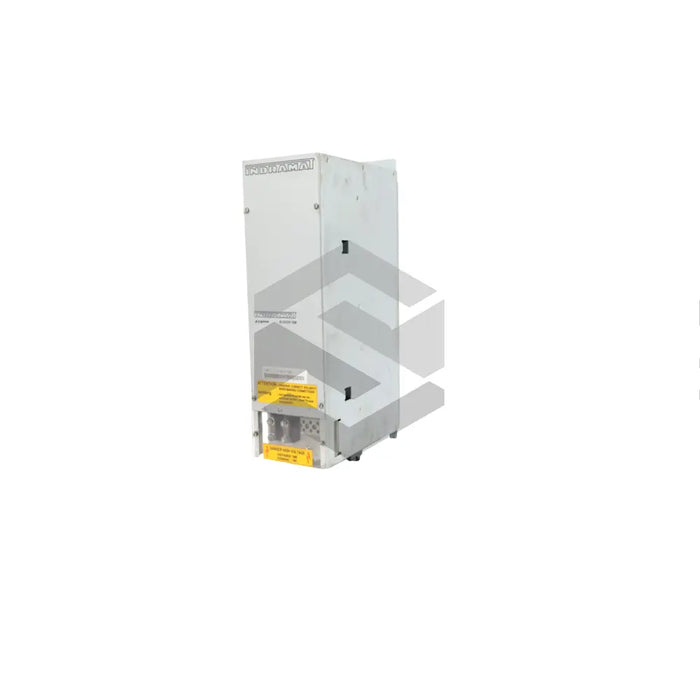

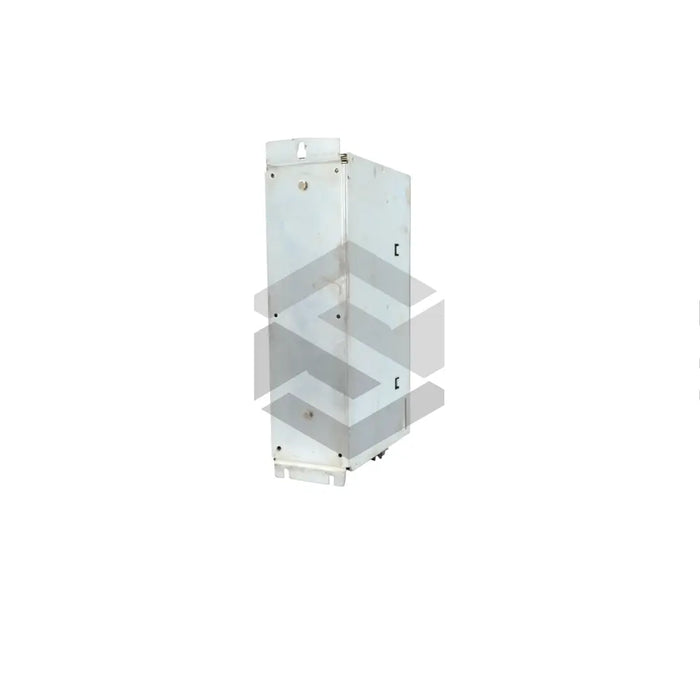

The Bosch Rexroth Indramat TBM 1.1-20/115V is an additional bleeder module for the INDRAMAT's A.C drive system, specifically designed to boost the peak current and continuous regenerated power, thus promoting greater drive efficiency. The connecting voltage needed is 3*AC220V(+/-15%) and it requires a consistent bleeder power ranging from 0.45kW to 2.25kW, with a peak bleeder power requirement of 10kW to 50kW to ensure efficacy. It's essential for this module to be installed using a unique 24V lead and EB leads route, alongside 140mA 24V blower supply current. Climate-wise, it can operate under +5°C to +45°C temperatures, and cope with altitudes up to 1000m above sea level. Ensuring sufficient heat dissipation is crucial as the TBM1.1-20 bleeder resistor heats up during operation, potentially causing damage if flammable materials are places too close. It complies with DIN standards for humidity, insulation, and protection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

TBM 1.1-20/115V

System Type

A.C drive system

Component

Additional Bleeder

Application

TVM 2.4

Connecting Voltage

3*AC220V(+/-15%)

Continuous Bleeder Power

0.45kW to 2.25kW

Peak Bleeder Power

10kW to 50kW

Additional Components

TVM 2.4 Servo Drive, TBM Additional Bleeder

Installation Requirement

24 V lead and EB leads route, 24V blower supply current consumption 140mA

Ambient Temperature

+5°C to +45°C

Derated Output

55°C

Installation Altitude

Maximum 1000 meters above sea level

Humidity Class

Class F per DIN 40 040

Insulation Class

Class C per DIN VDE 0110

Protection Category

IP 10 per DIN 40 050

Heat Management

200 mm distance from combustibles, 40mm distance to the side and front unit
