TCM 1.1-08

Original price $6,456.33 - Original price $6,456.33
Original price
$6,456.33
$6,456.33 - $6,456.33
Current price $6,456.33
In Stock, Ships 1 - 2 Days
Request a quote

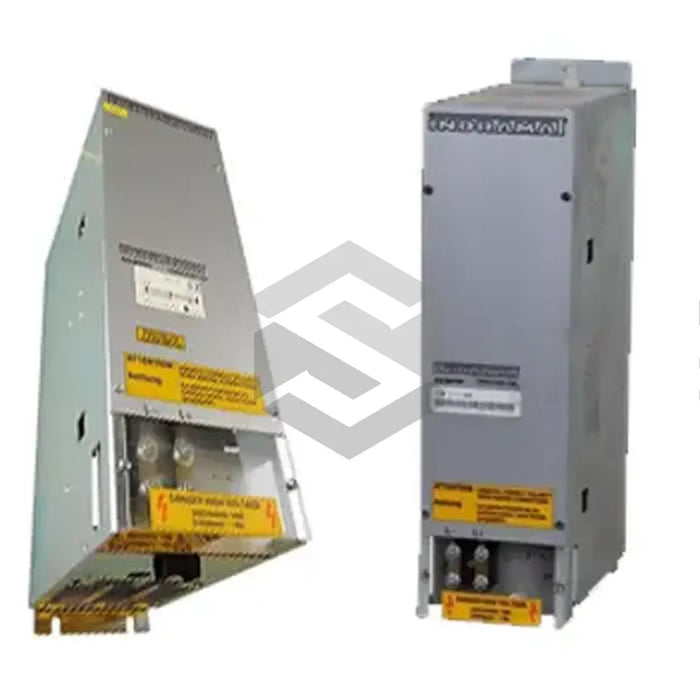

The TCM 1.1-08, an auxiliary capacitor module by Bosch Rexroth Indramat, boasts an 8 mF capacitance and acts as a complement to Indramat power supplies used for energizing motors and drives. Designed to optimize efficiency, it stores energy generated during braking for future use in acceleration, effectively reducing heat loss and energy consumption. Weighing 8 kilograms, the TCM 1.1-08 features two air flow inlets to aid in convection cooling and should be operated within a temperature range of 5 to 45 degrees Celsius. Conditions for storage include temperatures from -30 to 85 degrees Celsius. Bear in mind, the module should be installed below 1000 meters altitude, adhering to a humidity class F and protection category IP10. Powering multiple AC drives, Indramat power supplies convert AC input power to DC output, facilitating a DC control voltage output range of 24 to 30 Volts accompanied by a continuous load current of 8 Amps.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product type: Auxiliary capacitor
  • Model: TCM 1.1-08
  • Capacitance: 8 mF
  • Purpose: Energy storage for braking and acceleration
  • Shipping weight: 8 kilograms
  • Cooling: Convection, aided by two inlets
  • Operating temperature range: 5 to 45 degrees Celsius
  • Maximum ambient temperature: 55 degrees Celsius
  • Storage and transportation temperature: -30 to 85 degrees Celsius
  • Maximum installation altitude: 1000 meters
  • Humidity class: F per DIN 40 040
  • Protection category: IP10 per DIN 40 050
  • DC control voltage output range: 24 to 30 Volts
  • Continuous load current: 8 Amps
  • Allowable voltage ripple: 8%
