S image of TDA 1.3-050-3-A0S

TDA 1.3-050-3-A0S

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

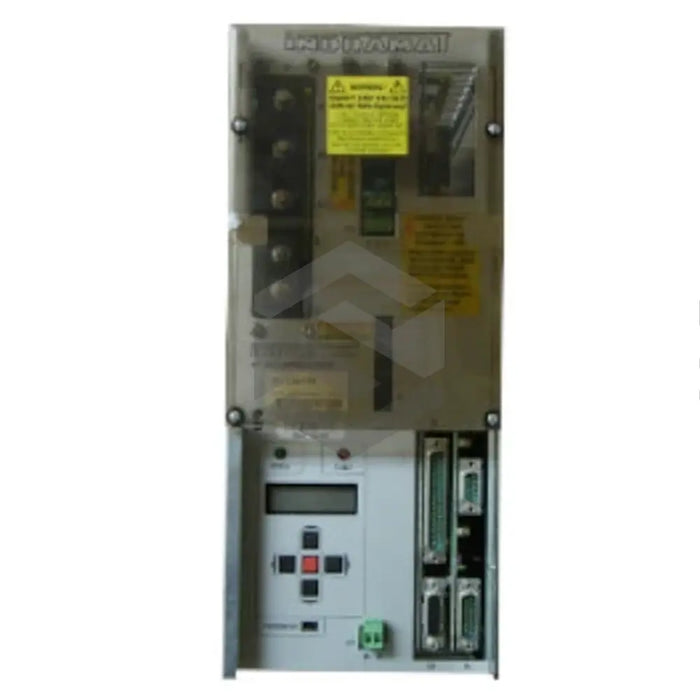

Bosch Rexroth Indramat manufactures the TDA 1.3-050-3-A0S, a 50-Amp Spindle Control unit primarily used for controlling spindle motors (2AD/1MB), whose rated continuous shaft power typically falls between 3 and 10 kW. This unit is valued for its high stiffness and broad speed range at constant power. The TDA 1.3-050-3-A0S operates alongside other Rexroth controllers to effect feed axes, its function depending on the input parameters. Parameters can be adjusted to match main spindle motors for respective application and machine conditions. This unit has a 35-Ampere continuous effective current, nominal current rating of 50 Amperes, and weighs 10.5 kg. Its environmental temperature range is 5 to 45 oC. The TDA 1.3-050-3-A0S features an analog command value and an additional RS 232C serial interface. The unit’s link circuit rated voltage is 300 Volts, and the recommended maximum installation height is 1000 meters above sea level.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

TDA 1.3-050-3-A0S

Product Type

50-Amps Spindle Control unit

Suitable for motors

Spindle motors (2AD/1MB)

Rated Continuous Shaft Power Range

3 – 10 kW

Main characteristics

Wide range of speed at constant power, high stiffness

Compatible with

Rexroth controllers for feed axes

Functionality

Based on inputted parameters

Match to Spindle Motor

By inputting appropriate parameters

Programmable Module

Transferrable to a new spindle controller if needed

Continuous Effective Current

35 Amperes

Nominal Current Rating

50 Amperes

Weight

10.5 kg

Humidity Class

F

Protection Degree

IP 10

Environmental Temperature Range (during operation)

5 oC to 45 oC

Command Value

Analog

Additional Interface

RS 232C serial interface

Link Circuit Rated Voltage

300 Volts

Maximum Installation Height

1000 meters above sea level
