series image of a TDM 1.2-050-300-W1-220

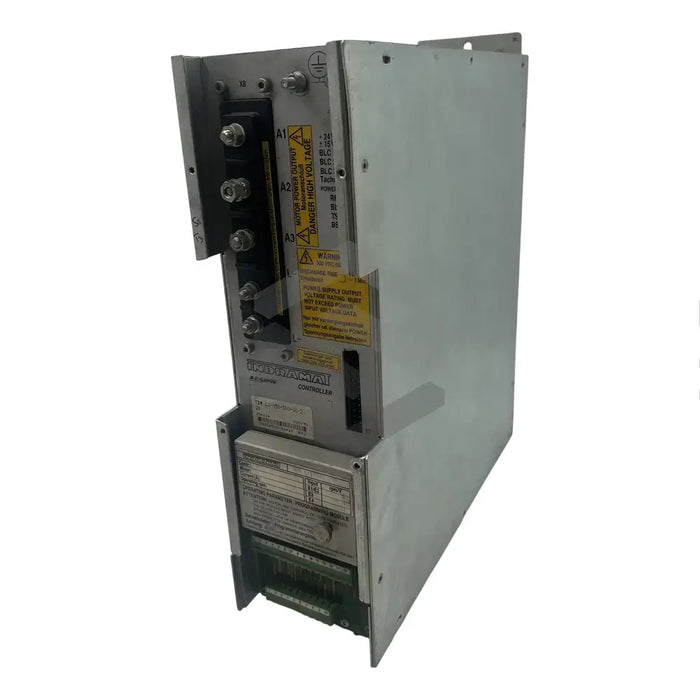

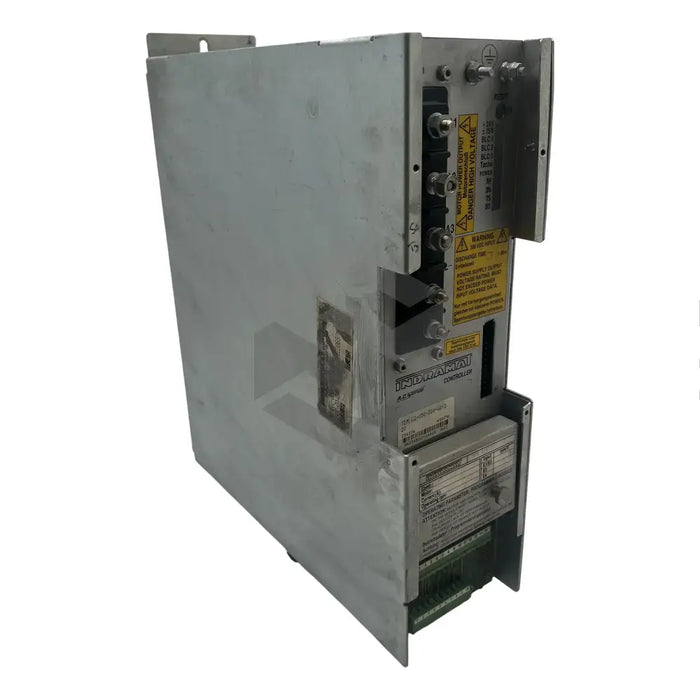

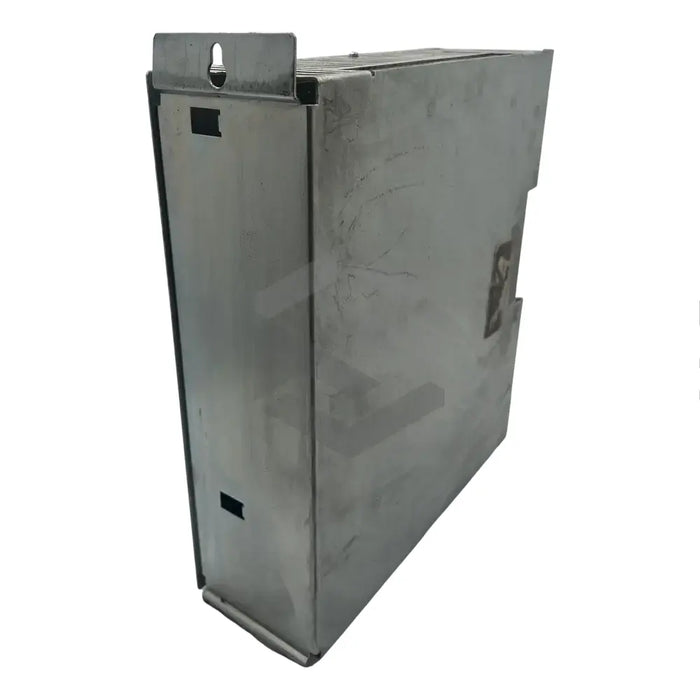

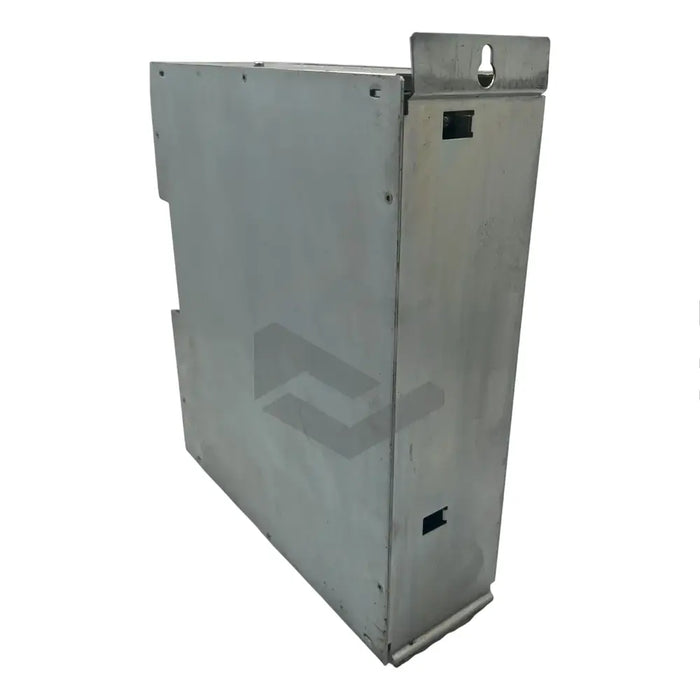

TDM 1.2-050-300-W1-220

by Bosch Rexroth Indramat
$948.00 - $948.00
$948.00
$948.00 - $948.00
$948.00
Available, Shipping Varies
The TDM 1.2-050-300-W1-220 is a TDM series servo drive made by Bosch Rexroth Indramat. It's designed to work with the company’s MAC series motors for motion control applications. The servo drive features a power rating of 15kW and a current rating of 45A. For enhanced interference immunity, the device should come with an AP 9 adapter board with a connecting terminal. Featuring an X5 connection terminal, the TDM series servo drive provides user-defined outputs and inputs. The unit's operation is indicated by a green voltage supply LED. The device, which should be flush-mounted in a control cabinet or on a mounting plate not more than 1,000m above sea level, has a power loss of 250W with continuous current and adopts a protection category of IP 10.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: TDM series servo drive
  • Power Rating: 15kW
  • Continuous Current Rating: 45A
  • Application: Used in MAC series of motors for motion control
  • Installation Requirements: Back wall of a control cabinet or a mounting plate within 1,000m above sea level
  • Additional Requirements: Requires an AP 9 adaptor board
  • Terminal Strip Characteristics: X5 connection terminal for user-defined outputs and inputs
  • Voltage Indicator: Green voltage supply LED
  • Fan Supply Voltage: 220V
  • Power Loss: 250W with continuous current
  • Mounting Specifications: M6-DIN 912 cheese head screws
  • Type Current: 50A
  • Fan Frequency Range: 50 to 60Hz
  • Humidity Classification: F as per DIN 40 040
  • Mounting Style: Flush mounting
  • Protection Category: IP 10
  • Cooling System: Heatsink of the fan rotor outside control cabinet.
