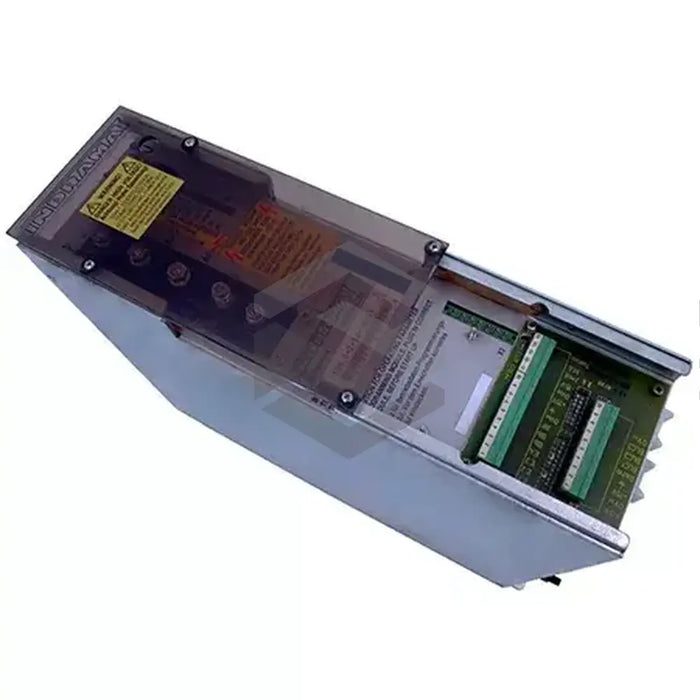

series image of TDM 1.2-100-300-W1-115

TDM 1.2-100-300-W1-115

by Bosch Rexroth Indramat
$7,990.00 - $7,990.00
$7,990.00
$7,990.00 - $7,990.00
$7,990.00
In Stock, Ships 3 - 5 Days
The TDM 1.2-100-300-W1-115, manufactured by Bosch Rexroth Indramat, is designed for high precision servo applications in machine tools for wood and metal working. With a link circuit voltage of 300 (+/-15%), this unit boasts a current of 100A, peak current of 100A, and a steady current of 65A. At a weight of 10.5kg, it generates 30kW power with a power loss of 400W. The product adheres to IP 10 protection and C insulation categories as per DIN VDE 0110. Optimum conditions include 1000 meters’ installation elevation, 5-55 degree temperature and humidity below 95%. The built-in fan functions at a rated connection voltage of AC 115 V (50 to 60 Hz) and employs forced ventilation cooling. Designed for use with MAC motors, it excels in automation systems and production machines, offering speedy diagnostics, torque reduction, direction of rotation reversal, and high short-time acceleration.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: TDM 1.2-100-300-W1-115
  • Current: 100A
  • Peak Current: 100A
  • Continuous Current: 65A
  • Link Circuit Voltage: 300 (+/-15%)
  • Weight: 10.5kg
  • Power Loss: 400W
  • Power: 30kW
  • Protection Category: IP 10
  • Insulation Category: C (DIN VDE 0110)
  • Max Installation Elevation: 1000 meters above sea level
  • Operating Temperature: 5 to 55 degrees
  • Permissible Humidity: 95% (no condensation)
  • Rated Connection Voltage for Built-in Fan: AC 115 V 50 to 60 Hz
  • Cooling Method: Forced Ventilation
  • Compatible Motors: MAC71 and MAC160
  • Function: Generates a three-phase system from the DC link voltage
  • Clearance for Optimum Cooling: 10mm between adjacent modules.
