TDM 4.1-020-300-W0/S102

Original price $1,880.13 - Original price $1,880.13
Original price
$1,880.13
$1,880.13 - $1,880.13
Current price $1,880.13
Available, Shipping Varies

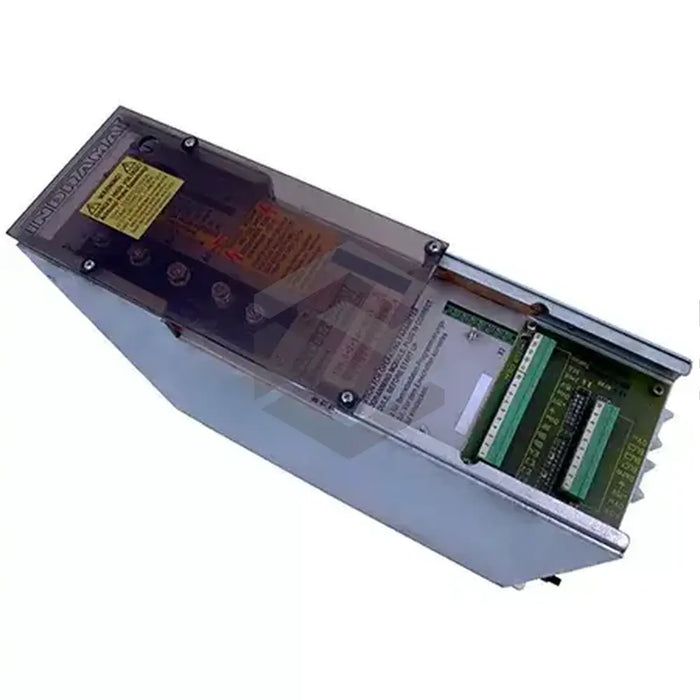

The TDM 4.1-020-300-W0/S102 is a servo drive module manufactured by Bosch Rexroth Indramat, primarily intended for setpoint smoothing with two differential inputs. It interfaces with the MAC AC motor via its A1, A2, and A3 terminals and includes substantial safety precautions to protect against overload. The module, weighed at 8kg, is package housed with an IP 10 type of protection as per DIN 40 050 specifications, which should always be placed to left of power supply components and away from heat sources. The device operates optimally with an internal temperature at least 2°C above external conditions, to prevent dew formation, and within a running-temperature range of -30°C to 85°C, while not exceeding 55°C. It reflects its operational status and rotor position through green LED indicators. The product has a current capacitance of 50mA at a 24V load voltage and 15mA at a +/-15V measuring voltage, and denotes class F permissible humidity under DIN 40 040 specifications.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Drive Module
  • Model: TDM 4.1-020-300-W0/S102
  • Setpoint Smoothing Support: Yes
  • Compatibility: MAC AC Motor
  • Safety Features: Yes
  • Protection Type: IP 10
  • Weight: 8kg
  • External Voltage Connection: Not Permitted
  • Operating Temperature Range: Maximum 55°C
  • Storage and Transportation Temperature Range: -30°C to 85°C
  • Current Capacitance: 50mA at 24V load voltage and 15mA at +/-15V measuring voltage
  • LED indicators: RF LED green on active drive, BLC1, BLC2, BLC3 for rotor positioning
  • Current Setpoint: 0.375V/A at MA terminal
  • Minimum Adjustable Current: 1A
  • Humidity Class: Class F
