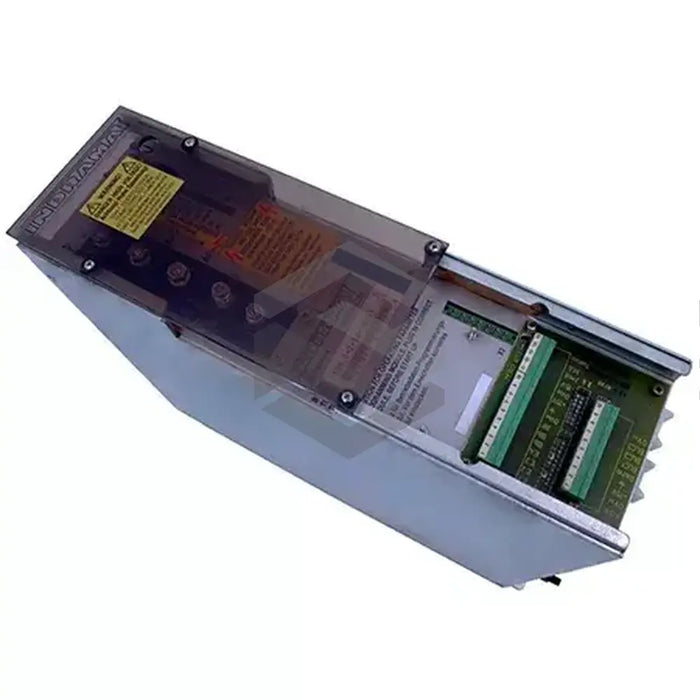

TDM1.2-100-300-W1-000
The Bosch Rexroth Indramat TDM1.2-100-300-W1-000 is a high‑performance module within the TDM Servo Drive Modules series, specifically engineered for precision motion control in industrial automation. Featuring a continuous current rating of 65 A and a peak current of 100 A, this drive ensures robust torque delivery for demanding applications. Optimized for use with MAC motor series, its primary function is to convert DC bus voltage into precise servo drive signals, making it ideal for machine tools, assembly lines, and robotics where accuracy and reliability are paramount.
Incorporating forced ventilation cooling, the TDM1.2-100-300-W1-000 maintains stable operating temperatures under sustained loads, preventing thermal shutdowns. It operates at a nominal Link Circuit D.C. Voltage of 300 (~ 15%) V, enabling compatibility with standard plant DC bus systems. The drive delivers up to 30 kW of power with a minimal power loss of 400 W, reflecting its high efficiency in energy conversion. With a compact design weighing just 10.5 kg, it maximizes power density without compromising performance.
Built for reliability, this module meets IP10 protection standards against solid objects and holds an Insulation Class C rating for enhanced electrical safety. Its permissible operating temperature range of +5 to +45 °C (up to +55 °C under reduced load) and storage range of -30 to +85 °C ensure durability in varying environmental conditions. Rated for installations up to 1000 m altitude, it maintains consistent performance without derating. By combining high current capacity, efficient cooling, and stringent protection ratings, the TDM1.2-100-300-W1-000 delivers exceptional uptime and precision, offering significant productivity and cost benefits in industrial automation systems.
