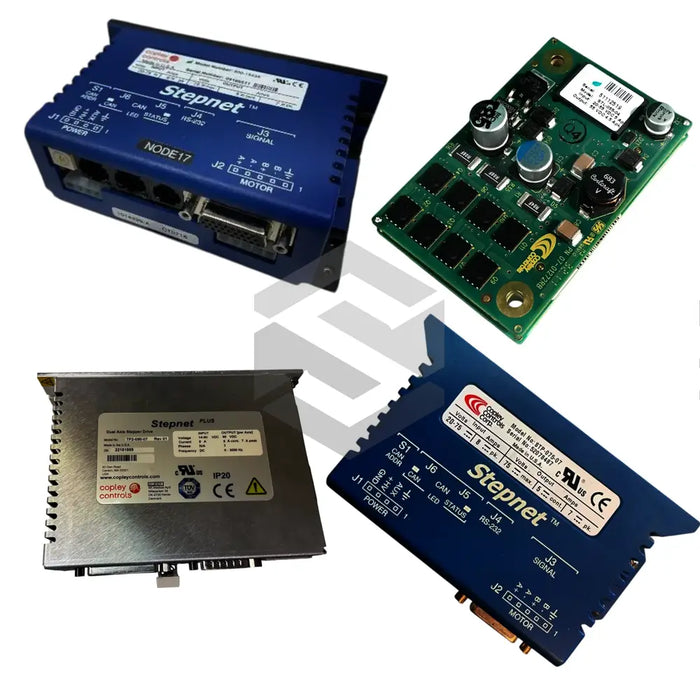

S image of TE2-090-10

TE2-090-10

by Copley Controls
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The TE2-090-10 from Copley Controls outputs a peak 20 Adc for one second and operates on 14 to 90 Vdc. Part of the Stepnet Compact Drives, it supports EtherCAT and RS-232 and integrates sixteen non isolated and eight opto isolated inputs. This dual-axis microstepping drive includes seven digital outputs and delivers precise motor control.

Its 6.78×4.70×3.14-inch size and 10 g shock rating suit rugged industrial use. Heatsink or forced-air cooling sustains 10 A continuous current per axis. IEC 61508 and ISO 13849 compliance ensures reliability.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Communication

EtherCAT, RS-232

Continuous current per axis

10 A

Cooling

Heatsink or forced-air cooling for continuous output

Dimensions (L×W×H)

6.78×4.70×3.14 in (with heatsink)

Input voltage

14–90 Vdc

Peak current per axis

10 A

Standards/Directives

IEC 61508; ISO 13849; IEC 61800-5-2; 2006/42/EC

Thermal resistance (no heatsink)

2.32 °C/W

Thermal resistance (with heatsink)

1.28 °C/W

Weight

2.75 lbs (with heatsink)
