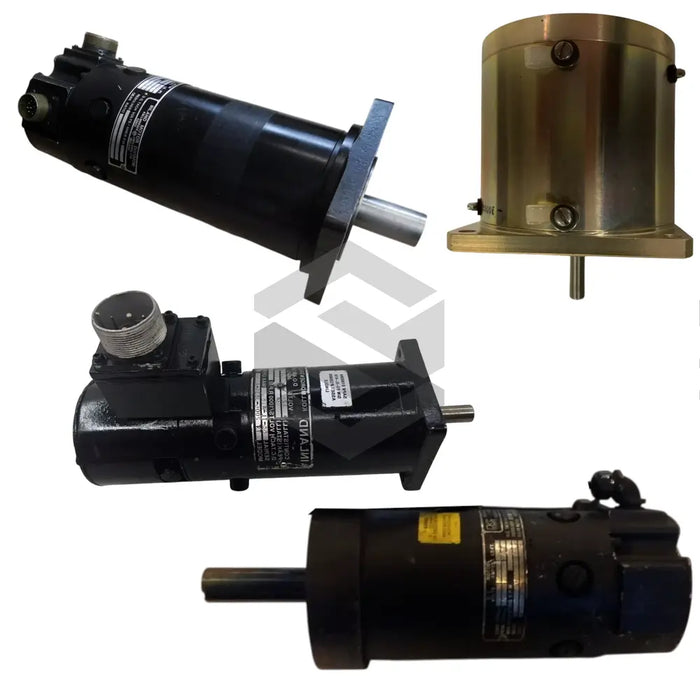

TTB-2950-3337-A
by Kollmorgen
The TTB-2950-3337-A from Kollmorgen belongs to the renowned Inland Direct Drive Motors series, engineered to meet the demands of modern industrial automation. This high-performance motor operates on a Rated Voltage of 400V AC within a 3-Phase system, delivering a robust Power output of 7.5 kW. Capable of a Rated Speed of 3000 RPM under a Frequency of 50/60 Hz, the TTB-2950-3337-A ensures consistent performance across global power standards. With an Output Current rating of 10 A and a reliable Isolation Voltage of 2000 V AC, it combines safety with sustained high-power output. The incorporation of a precise Torque Constant of 2.5 Nm/A further underscores its suitability for torque-critical applications.
In terms of technical capabilities, this motor leverages PWM Control Type for fine-tuned speed modulation, minimizing power loss while maximizing efficiency. The unit’s Peak Torque capacity of 22 Nm enables it to handle short-duration, high-load tasks with ease. The robust Mounting Type of DIN Rail simplifies installation and replacement in systems where space optimization is critical. Its Protection Class of IP54 provides dependable defense against dust ingress and splashing water, ensuring uninterrupted operation in harsh environments. Additionally, the motor’s Operating Temperature Range spanning -10°C to +40°C makes it adaptable to diverse industrial conditions without derating.
Operationally, the TTB-2950-3337-A excels in reliability and ease of maintenance. The Air cooled Cooling Method maintains optimal thermal conditions during extended runtimes, eliminating the need for auxiliary cooling systems. The IP54 enclosure and sturdy construction deliver extended service life even under variable ambient conditions. Thanks to the PWM drive scheme, the motor offers responsive acceleration and deceleration profiles, reducing mechanical stress on connected equipment. A One-year Warranty backs the product, reflecting the manufacturer’s confidence in its durability and performance consistency.
Integration of the TTB-2950-3337-A into existing automation frameworks is seamless: its standard DIN Rail mounting aligns with common panel designs, and the analog-friendly Control Type interfaces readily with PLC and motion controllers. This direct-drive configuration eliminates the need for gearboxes, reducing backlash and maintenance points. Ideal for applications in conveyor systems, packaging machinery, and robotic positioning, it empowers engineers to streamline system architecture while achieving high torque density and precision. The TTB-2950-3337-A stands as a versatile solution for industries seeking to elevate throughput, reliability, and control in their automation deployments.
