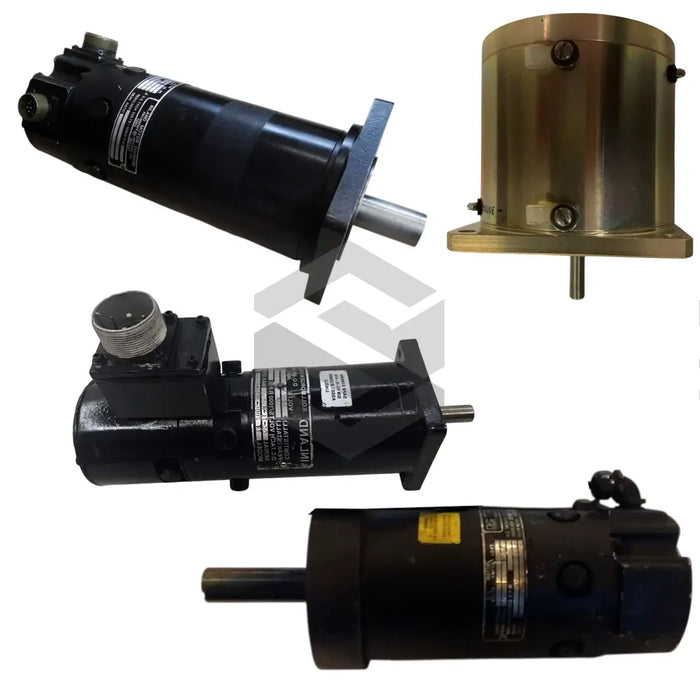

S image of TTB1-F01-4503-1001-C

TTB1-F01-4503-1001-C

by Kollmorgen
$3,881.23 - $3,881.23
$3,881.23
$3,881.23 - $3,881.23
$3,881.23

In Stock, Ships 1 - 3 Days

The Kollmorgen TTB1-F01-4503-1001-C from Inland Direct Drive Motors is a PCB-mounted terminal block featuring front wire entry, a pitch of 5.08 mm, a maximum current capacity of 24 A, and a UL94 V-0 flame-rated polyamide housing. It operates reliably from –40°C to +105°C and utilizes tin-plated contacts for enhanced conductivity. Key specifications include a continuous stall current of 43.9 A, peak stall current of 182 A, continuous stall torque of 18 Ib-ft, and peak stall torque of 61 Ib-ft. The integrated resolver 11BRW-309-C10/5, gear ratio of 10/6, D.C. tachometer voltage rating of 19 V per 1000 RPM, and maximum speed of 2400 RPM ensure precise feedback, stable performance, and high durability in demanding industrial automation environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Contact Plating

Tin

Continuous Stall Current

43.9 Amps

Continuous Stall Torque

18 Ib-ft

Continuous Stall Voltage

11 Volts

D.C. Tachometer Voltage

19 Volts per 1000 RPM

Flame Rating

UL94 V-0

Gear Ratio

10/6

Housing Material

Polyamide (PA66)

Maximum RPM

2400 RPm

Peak Stall Current

182 Amps

Peak Stall Torque

61 Ib-ft

Peak Stall Voltage

38 Volts

Resolver

11BRW-309-C10/5
