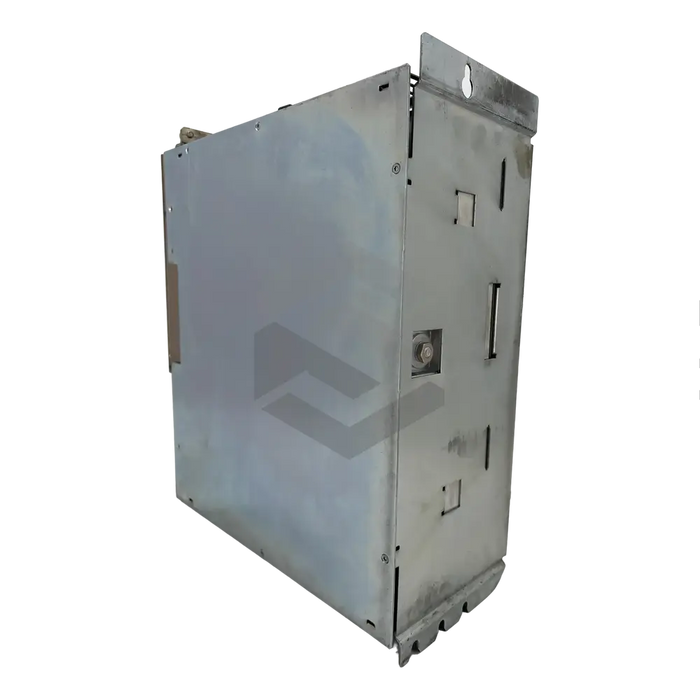

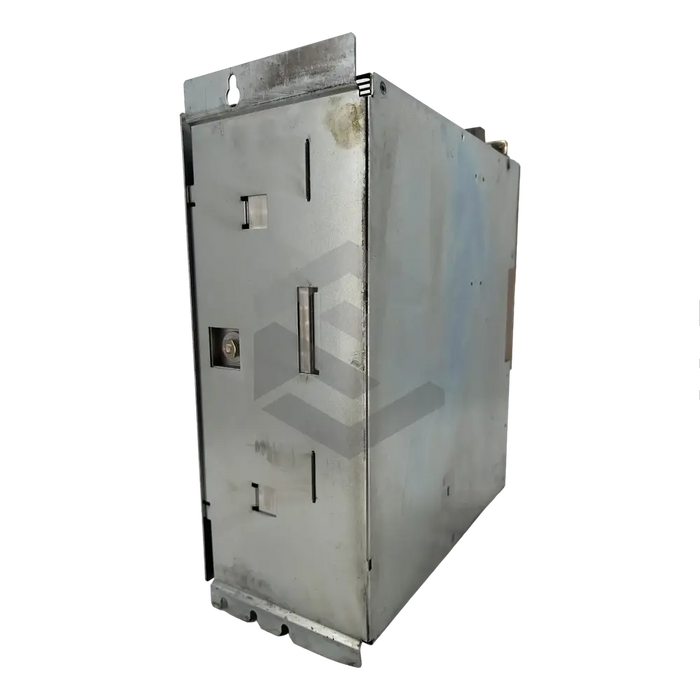

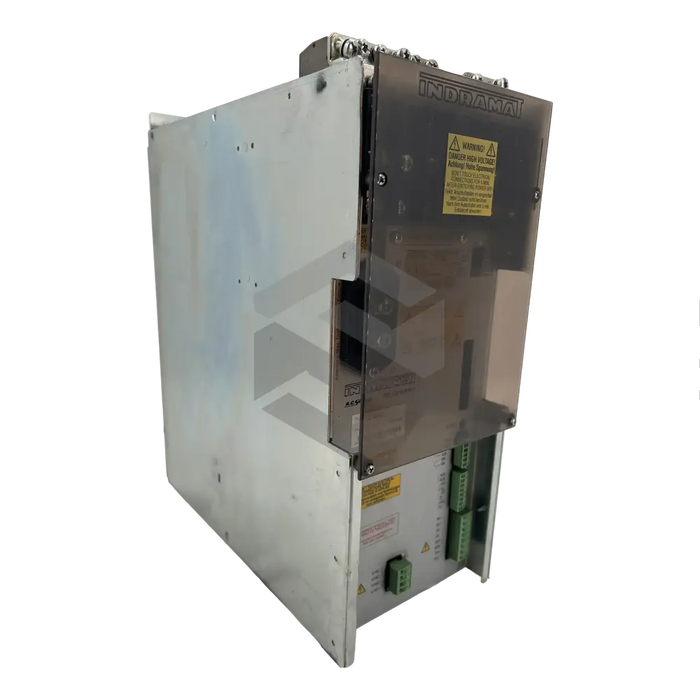

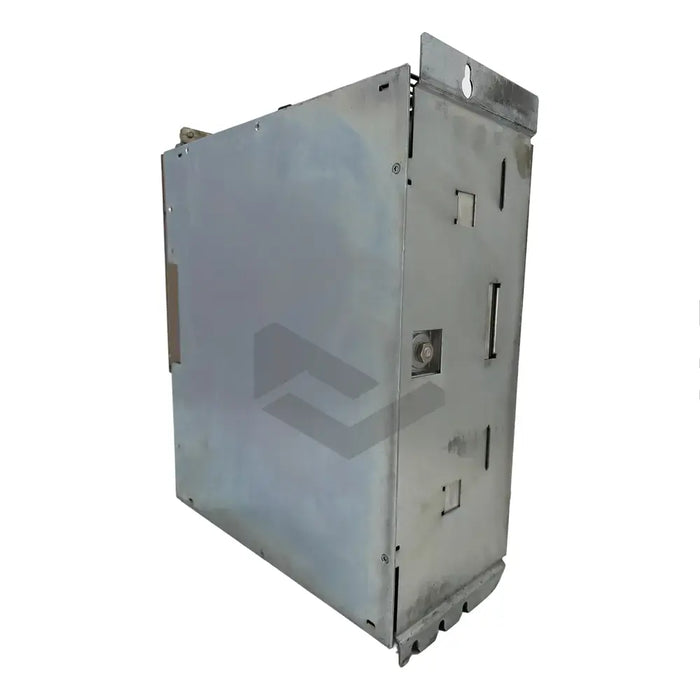

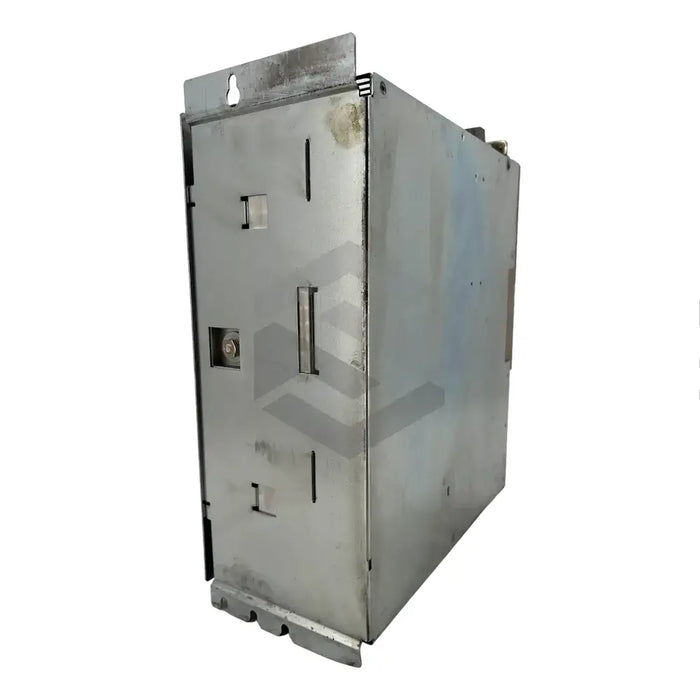

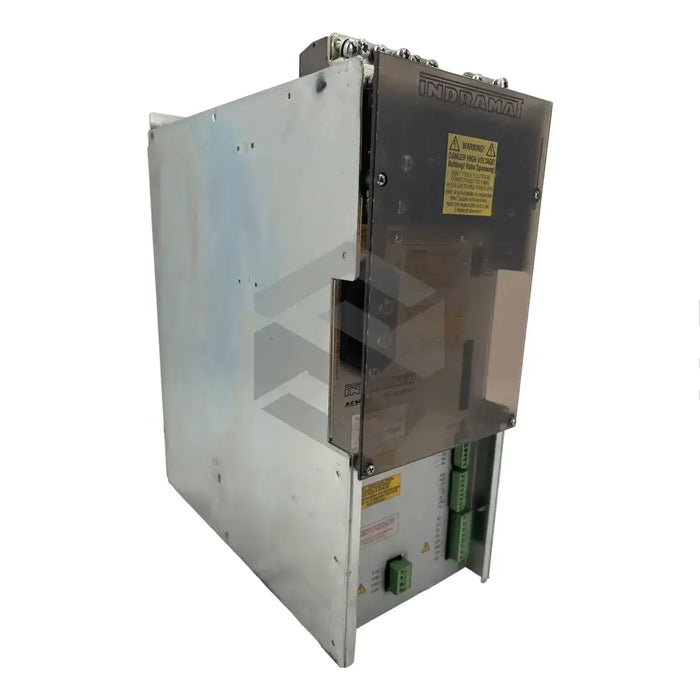

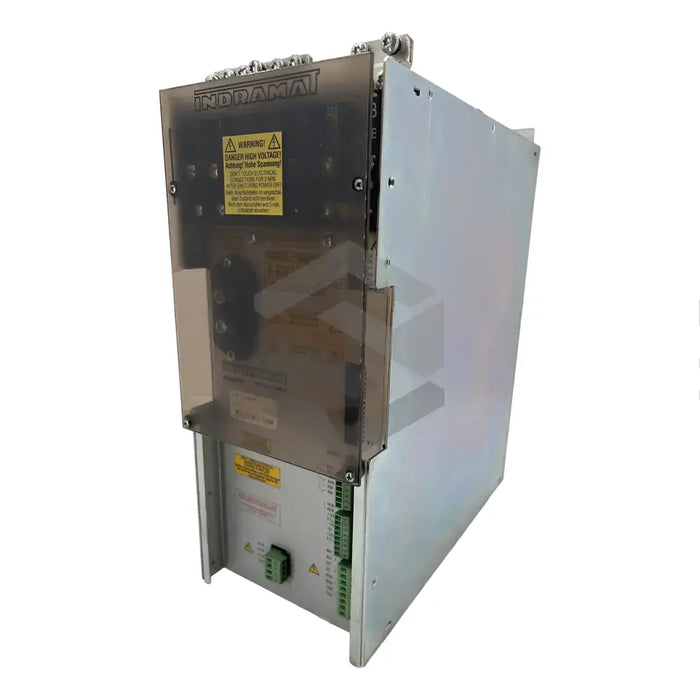

TVD 1.2-08-03

Original price $7,294.18 - Original price $7,294.18
Original price
$7,294.18
$7,294.18 - $7,294.18
Current price $7,294.18
In Stock, Ships Today
Request a quote
Rexroth Indramat specializes in durable, efficient motion control aftermarket accessories, including servo drives, drive controllers, motors, gearing, programmable modules, power cables, and electronic controllers. Emphasizing stable performance and safety, the products guarantee cost-effectiveness and reliability. The TVD 1.2-08-03 supply module, one of the many products, demands certain ambient conditions to perform optimally: relative humidity of 95%, absolute humidity of 25 g/m3, and temperature range of +5 to +45°C. The module is IP10-protected and should not be exposed to conductive dirt and condensate. Storage or transportation temperature ranges from -30°C to +85°C. The module should reside not more than 1000 meters above sea level. Its electrical details include a 3 x 380 to 480 +/- 10% V input voltage, 50 to 60 Hz frequency, and an incoming power value at the electric section of about 300 W. DC Bus voltage and continuous power are estimated at 320 V +/-5% and 7.5 kW, respectively.
30 Day Warranty
Technical Specifications
  • Brand: Rexroth Indramat
  • Product Type: Motion Control Aftermarket Accessories
  • Model: TVD 1.2-08-03 Supply Module
  • Product Purpose: Servo Drives, Drive Controllers, Asynchronous Motors, Gearing, Low Inertia Motors, Programmable Modules, Power Cables, Electronic Controllers
  • Relative Humidity: 95%
  • Absolute Humidity: 25g of water/m3 LuFt
  • Protection Category: IP10 per DIN 40 050
  • Contamination Level: Non-Conductive Dirt and No Condensate
  • Ambient Temperature with Rated Data: +5 to +450C
  • Storage Temperature: -300C to +85
  • Maximum Permissible Temperature (Derated Data): 550C
  • Maximum Installation Height: 1000 meters above sea level
  • Input Voltage: 3 x 380 to 480 +/- 10% V
  • Frequency: 50 Hz to 60
  • Incoming Power Value at Electric Section: 300 W
  • DC Bus Voltage: 320 V +/-5%
  • DC Bus Continuous Power: 7.5 kW.
