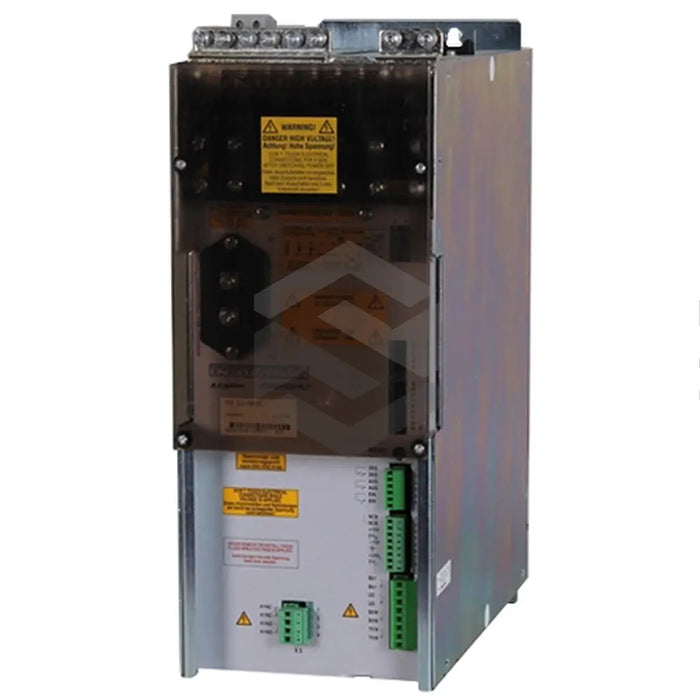

TVD 1.3-08-03-S100
The Bosch Rexroth Indramat TVD 1.3-08-03-S100 power supply module is designed to provide DC power to digital drives by directly connecting to a three-phase AC supply ranging between 380 to 480 Volts AC. As part of the Indramat AC drive system, it can be combined with diverse AC drives and auxiliary units to achieve customer-specific solutions. The module provides a continuous power of 7.5 kilowatts on DC bus and can sustain peak DC power of 22.5 kilowatts for short durations, while operating efficiently within a temperature range of 5 to 45 degrees Celsius. It's also equipped with a buffer capacitor for effective smoothing and an internal contactor for mains disconnect. Its bleeder resistor absorbs and dissipates power during generator mode operation. The module weighs approximately 10.5 kilograms and provides a control voltage of 22 to 26 Volts DC with a continuous current of 7.5 Amps.
