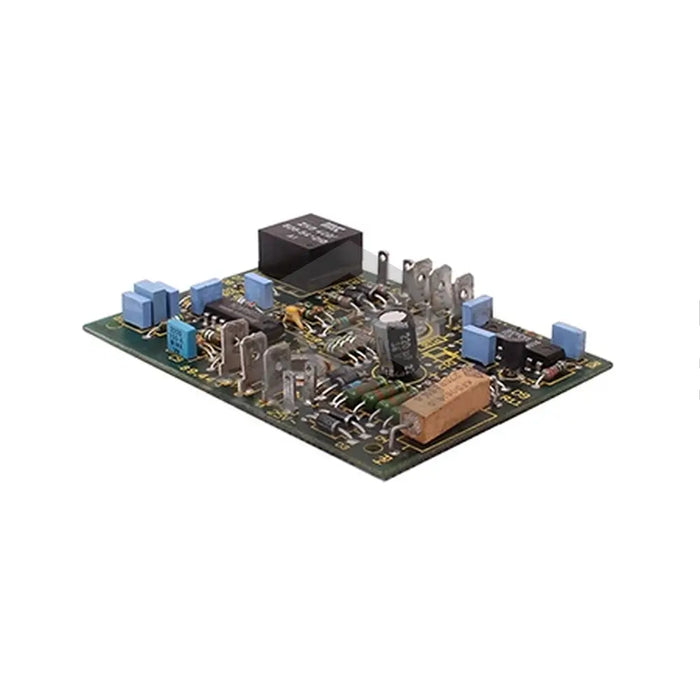

TVM 1.2-050-W1
The TVM 1.2-050-W1, produced by Bosch Rexroth Indramat, is a power supply module principally utilized to power servo drives, delivering a consistent mechanical output of 4.1 kW. Components of the module include a transformer, capacitor module, auxiliary bleeder resistor, and dynamic braking. Integral fuses afford line input protection and the device can function with or without a bleeder resistor to handle continuous regenerated power. However, the operating parameters vary, with a higher continuous power absorption (2.25kW to 0.45kW) and peak power (50kW to 10kW) when utilizing a bleeder resistor. The DC bus continuous power offered by the module is 7.5 kW, peaking at 60 kW. The unit runs at a standard 50 A and incorporates a blower for heat dispersal, drawing on environmental air. Mounting requires a minimum of 200 mm top clearance and 40mm side clearance. Proper functionality necessitates installation in an IP54 protection standard switch cabinet. The module itself has an IP10 protection classification and can operate at up to +45 degrees Celsius without any reduction in rated output.
