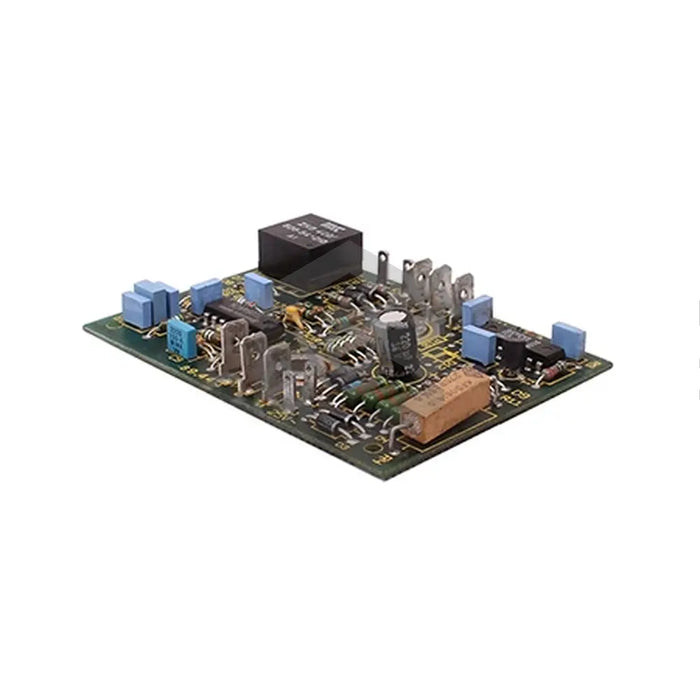

series image of TVM 2.2-050-220/300

TVM 2.2-050-220/300

by Bosch Rexroth Indramat
$0
$3,234.75 - $3,234.75
$3,234.75
$3,234.75 - $3,234.75
$3,234.75
Available, Shipping Varies
 More payment options
The Rexroth TVM 2.2-050-220/300 from Bosch Rexroth Indramat is a TVD series supply module with a type current of 50 Amps. This output is only achievable under recommended operating conditions–an altitude of no more than 1000 meters and temperatures between 5 and 45 degrees Celsius. With an input compatibility of 220 Volts AC (three phase), the supply can connect to AC systems of varying voltages through an autotransformer. Protective circuit breakers or fuses can be used against AC system anomalies. The module's DC bus carries a rating of 300 Volts DC with voltages between 255 and 345 Volts DC. The control voltages are rated for 24 Volts/±15 Volts. Users must ensure the supply is disconnected from the input power and the DC bus has discharged before maintenance to prevent electrical shock.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: TVD series supply module
  • Designation: TVM
  • Series: 2
  • Configuration: 2
  • Type Current: 50 Amps
  • Rated Output Conditions: Altitude under 1000 meters, Temperature between 5-45 degrees Celsius
  • Input: Compatible with 220 Volts AC (Three Phase)
  • Protection: Circuit Breakers or Fuses
  • DC Bus Rating: 300 Volts DC
  • DC Bus Voltage Range: 255 to 345 Volts DC
  • DC Control Voltage: 24 Volts / ±15 Volts
  • 24 Volts DC Voltage Range: 24 to 30 Volts
  • 24 Volts DC Continuous Current: 8 Amp
  • Ripple: Approximately 10%
  • 15 Volts DC Voltage Range: 14.9 to 15.1 Volts
  • +15 Volts Continuous Current: 1.3 Amps
  • -15 Volts Continuous Current: 1.0 Amp
  • 15 Volts DC Ripple: Approximately 0.1%
