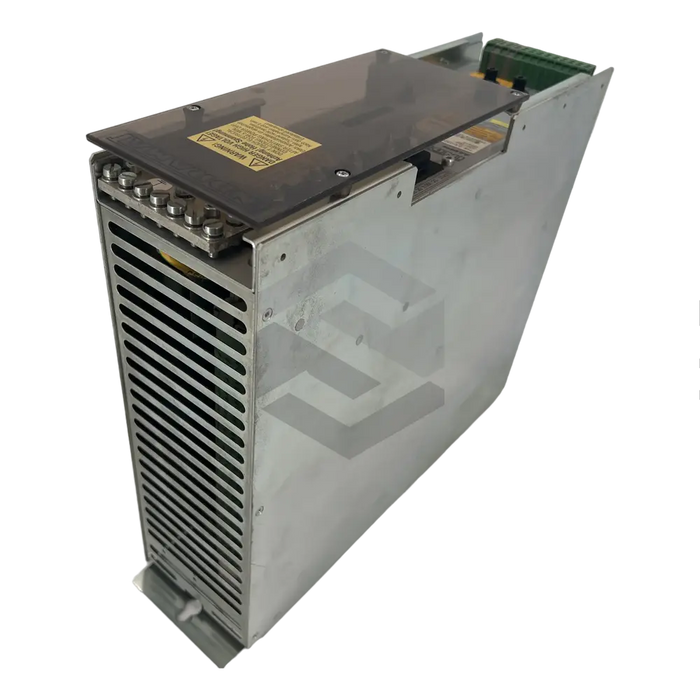

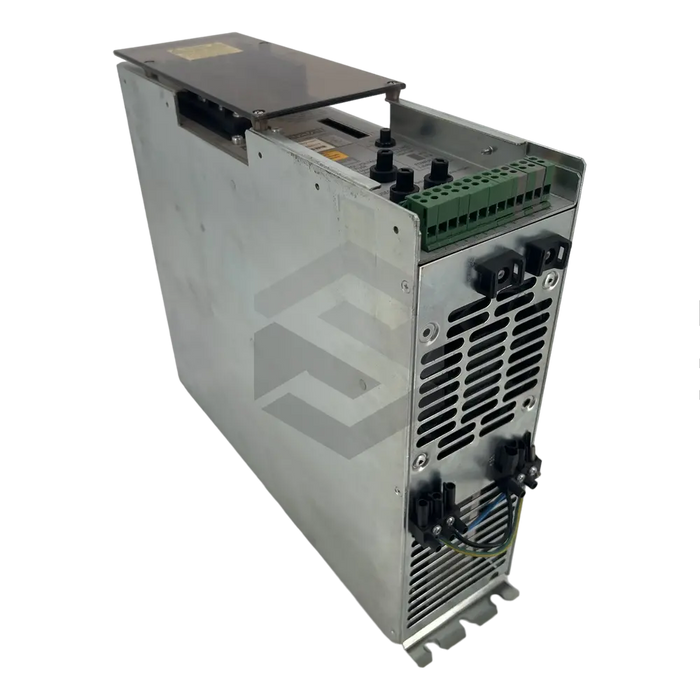

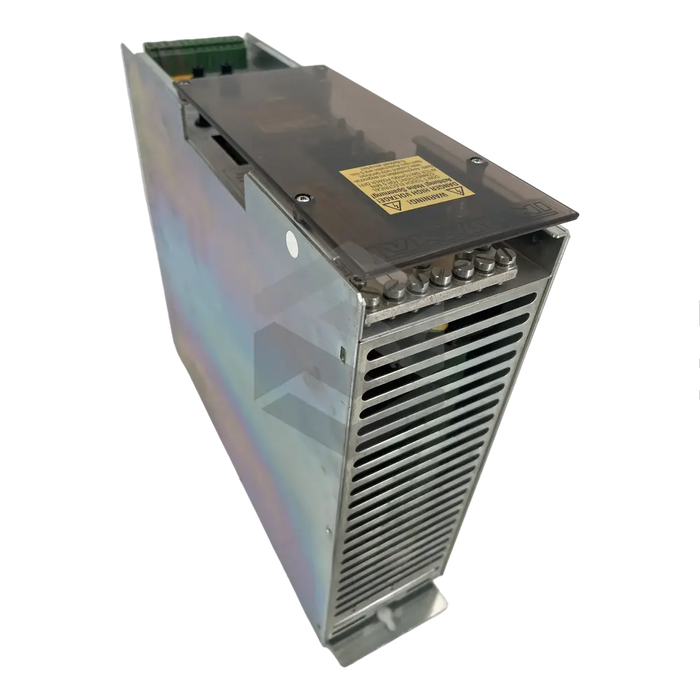

C image of TVM 2.4-050-220/300-W1/220/380 | Main (Front Left)

TVM 2.4-050-220/300-W1/220/380

by Bosch Rexroth Indramat
$2,172.35 - $2,172.35
$2,172.35
$2,172.35 - $2,172.35
$2,172.35

Available, Shipping Varies

The TVM 2.4-050-220/300-W1/220/380, developed by Bosch Rexroth Indramat, is a power supply module specifically designed to meet the power demands of the manufacturer's AC servo drives. This unit manages DC bus power requirements and features an automatic braking mechanism in case of failure. Equipped with an auxiliary capacitance module for energy storage, it provides a nominal DC bus voltage of 300VDC. The device's built-in blower maintains optimal operating temperature. Sporting a three-phase input voltage with a 220VAC rating, the unit also includes two terminals, L+ and L-, for DC bus connection. In-built line input fuses (rated 6.3A) secure the maximum continuous mechanical output of associated servo drives up to 4.1kW. The product also sports H3 and H4 LED displays for troubleshootings and doesn't require semiconductors. It possesses a 50A current rating and can be operated with an AC servomotor and drive from the same manufacturer to implement a modular design AC drive system.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Power Supply Module

Product Code

TVM 2.4-050-220/300-W1/220/380

Used With

AC servo drives

Function

Meets DC bus power requirements, dynamic braking action, prevent activation of bleeder resistor during braking

Nominal DC Bus Voltage

300VDC

Blower

Inbuilt, for cooling during operation

Input Voltage

Three-phase, 220VAC rating

DC Bus Connection

Supported via two terminals L+ and L-

Fuses

Two-line input fuses, 6.3A current rating

Maximum Continuous Mechanical Output

4.1kW

LED Displays

H3 and H4, for quick troubleshooting

Protection

Line input connection protected using fuses or circuit breakers

Current Rating

50A type

Signal Voltage Transmission

Via wire ribbon cable through X1 connector

Use Case

Modular design AC drive system when used with AC servomotor and AC servo drive.
