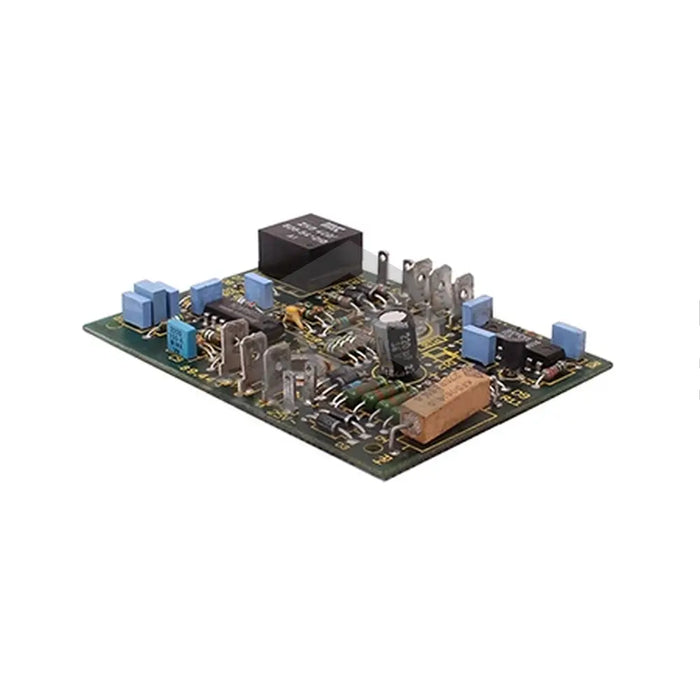

series image of TVM1.2-50-220/300-W1-115/220

TVM1.2-50-220/300-W1-115/220

by Bosch Rexroth Indramat
$4,526.67 - $4,526.67
$4,526.67
$4,526.67 - $4,526.67
$4,526.67
Available, Shipping Varies
The TVM1.2-50-220/300-W1-115/220, manufactured by Bosch Rexroth, is a power supply module that forms part of the TVM product line and Bose's AC drive system. It accommodates multiple drive modules, supplying high voltage DC for their motor power and control voltages. A power rectifier produces high voltage DC for drive units from a three-phase mains AC voltage. It has optional buffer capacitance for sufficient smoothing and an optional bleeder resistor to absorb regenerated power in generator mode. The modules boast extensive monitoring functionalities and communication is through the signal bus voltage. The unit accepts an input of 220 Volts AC (three-phase, 50 to 60 Hertz), with an output of 300 Volts DC and a nominal output of 50 Amps. The control electronics operate at 115 or 220 Volts AC input while an internal blower ensures heat dissipation. With a weight of 15 kilograms, the unit has advisable vertical mounting with good ventilation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: TVM
  • Product Type: Power Supply Module
  • Drive System: One supply module and multiple drive modules
  • Power Function: Provides high voltage DC for motor power and control voltages for connected Bosch drives
  • Power Rectifier Function: Rectifies the three-phase mains AC voltage
  • Generator Mode: Absorbs regenerated power with bleeder resistor
  • Buffer Capacitance: Used for sufficient smoothing
  • Control Electronics: Operates at single-phase 115 or 220 Volts AC input
  • Heat Dissipation Method: Internal blower
  • Ambient Temperature Range: 5 to 45 degrees Celsius
  • Weight: 15 kilograms
  • Mounting Style: Vertical
  • Ventilation: At least 80 millimeter spacing on top and bottom
  • Input Voltage: 220 Volts AC (three-phase, 50 to 60 Hertz)
  • Output Voltage: 300 Volts DC
  • Nominal Output: 50 Amps
