U12DNU-F

Original price $1,496.36 - Original price $1,496.36
Original price
$1,496.36
$1,496.36 - $1,496.36
Current price $1,496.36

In Stock, Ships Fast

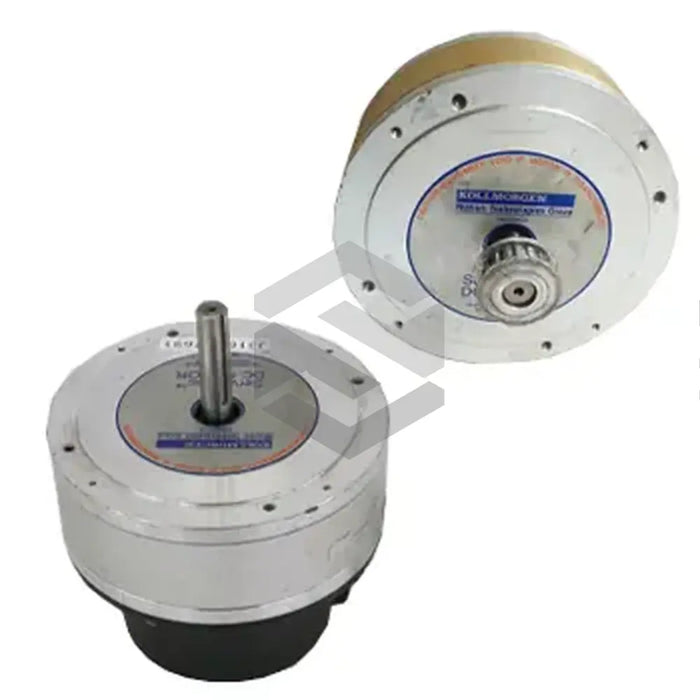

The Kollmorgen U12DNU-F is a servomotor from the Platinum U12D series. It operates at a rated input voltage of 59 V, with a current rate of 8.01 A. This motor provides a continuous torque of 123.6 N-cm at 25 °C and 110 N-cm at 40 °C, operating at a nominal speed of 3000 rpm. Furthermore, it can generate a peak torque of 1366 N-cm at 6000 rpm, consuming a peak current of 84 A. This model is encapsulated in an IP65-rated housing, assuring protection from dust and low-pressure water streams. The U12DNU-F’s distinctive feature is its iron-less disc armature, which promotes space efficiency during installation. It also offers the option of a fail-safe brake. Heat dissipation occurs naturally, but there's also a forced air cooling feature. This servo motor is ideal for robotics, business automation, semiconductor manufacturing, and information handling systems. Compliance with the recommended temperature range is crucial for optimal performance.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Kollmorgen

Product Type


Servomotor

Model


U12DNU-F

Series


Platinum U12D

Rated Input Voltage


59 V

Rated Current


8.01 A

Continuous Torque at 25 Celsius


123.6 N-cm

Continuous Torque at 40 Celsius


110 N-cm

Nominal Speed


3000 rpm

Peak Torque


1366 N-cm

Peak Current


84 A

Peak Speed


6000 rpm

Protection Category


IP65

Armature Resistance


0.61 Ohms

Terminal Resistance


0.75 Ohms

Static Friction Torque


4.9 N-cm

Cooling Method


Natural Convection and Forced Air Option

Mounting Options


Any Desired Position

Additional Options


Fail-Safe Brake Option

Application Fields


Robotics, Business Automation, Semiconductor Manufacturing, Information Handling Systems
