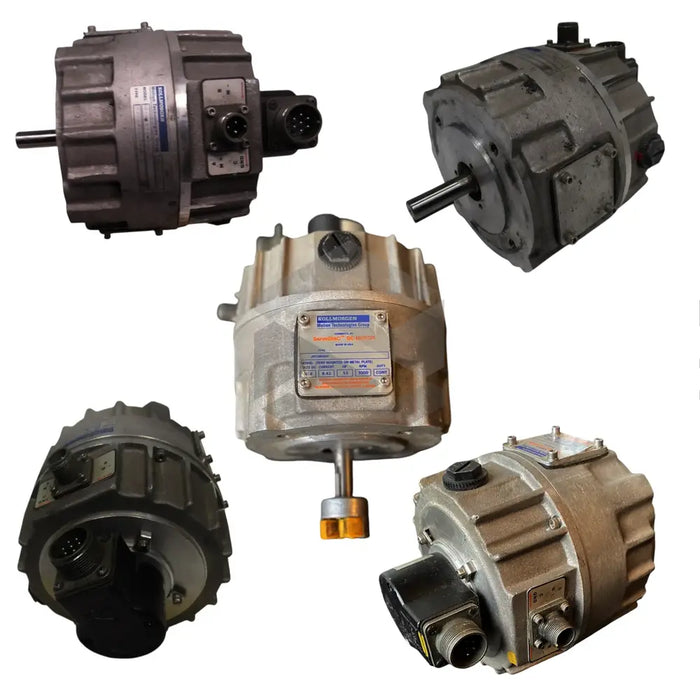

The U12M4 from Kollmorgen delivers a peak torque of 1316 oz-in and a rated speed of 3000 RPM. Part of the ServoDisc Pancake DC Motors, this DC motor outputs 284 watts continuous power and draws a rated continuous current of 8.8 Amps.
It tolerates a peak current of 85 Amps and features a cogging torque of 0 oz-in for smooth operation. The motor offers a maximum recommended speed of 6000 RPM.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Back Emf Constant
11.55 V/KRPM
Cogging Torque
0 oz-in
Continuous Stall Current
8.1 Amps
Continuous Stall Torque
122 oz-in (86 N-cm)
Maximum Recommended Speed
6000 RPM
Moment Of Inertia
0.0190 oz-in-sec² (1.34 kg-m²)
Peak Current
85 Amps
Peak Torque
1316 oz-in (929 N-cm)
Rated Continuous Current
8.8 Amps
Rated Continuous Torque @ 25°c
128 oz-in (91 N-cm)
Rated Continuous Torque @ 40°c
114 oz-in (81 N-cm)
Rated Power Output
284 Watts
Rated Speed
3000 RPM
Rated Terminal Voltage
43.4 Volts
Torque Constant
15.63 oz-in/Amp (11.04 N-cm/Amp)
