S image of U9M4

U9M4

by Kollmorgen
$1,017.97 - $1,374.97
$1,017.97
$1,017.97 - $1,374.97
$1,017.97

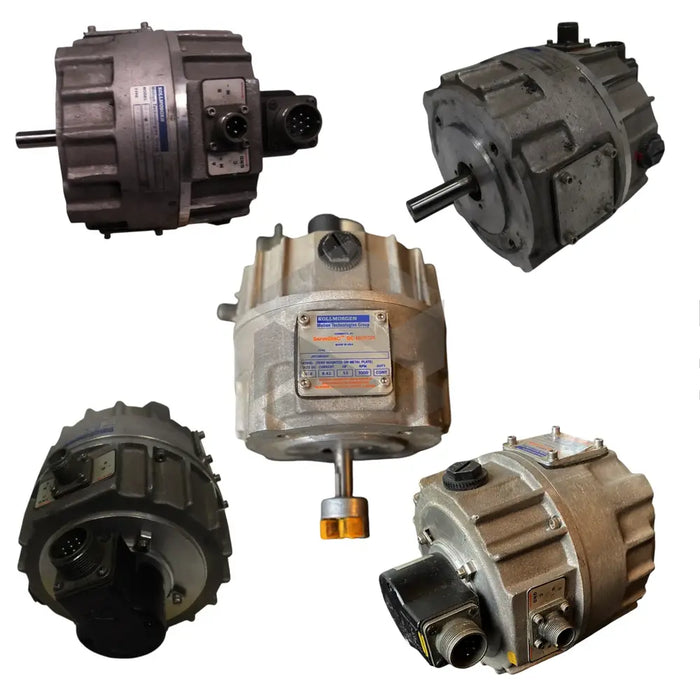

The Kollmorgen U9M4 servo motor from the ServoDisc Pancake DC Motors series is a compact industrial automation solution weighing 4.5 lbs (2.0 kg) with a peak torque of 469 oz-in (331 N-cm) and a rated power output of 113 Watts. This low-inertia design delivers a rated speed of 3000 RPM and a maximum recommended speed of 6000 RPM, supported by a cogging torque of 0 oz-in and a static friction torque of 4.0 oz-in. With a rated continuous current of 8.7 Amps and peak current of 72 Amps, the U9M4 ensures precise speed control, low RFI, and high torsional stiffness in a flat disc armature package.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cogging Torque

0 oz-in (0 N-cm)

Continuous Stall Current

6.8 Amps

Continuous Stall Torque

41 oz-in (29 N-cm)

Maximum Recommended Speed

6000 RPM

Moment Of Inertia

0.0056 oz-in-sec² (0.40 kg-m²)

Peak Current

72 Amps

Peak Torque

469 oz-in (331 N-cm)

Rated Continuous Current

8.7 Amps

Rated Continuous Torque @ 25°c

51 oz-in (36 N-cm)

Rated Continuous Torque @ 40°c

46 oz-in (32 N-cm)

Rated Power Output

113 Watts

Rated Speed

3000 RPM

Rated Terminal Voltage

24.1 Volts

Static Friction Torque

4.0 oz-in (2.8 N-cm)

Weight

4.5 lbs (2.0 kg)
