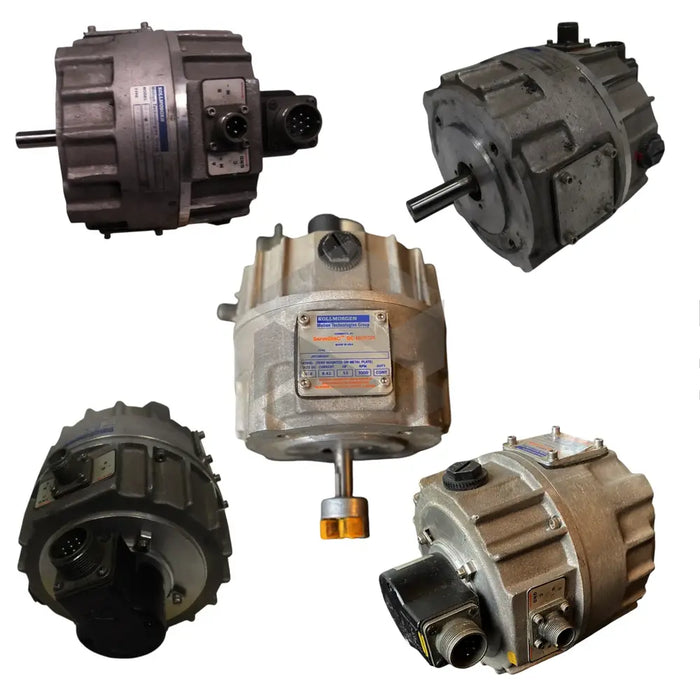

The Kollmorgen U9M4H is a high-performance servo motor from the ServoDisc Pancake DC Motors series. Delivering peak torque of 727 oz-in and rated power output of 179 Watts, it operates at 31.9 V with a rated speed of 3000 RPM and max 6000 RPM, weighing just 2.4 kg.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Armature Resistance ± 10%
0.660 Ohms
Back Emf Constant ± 10%
7.50 V/KRPM
Cogging Torque
0 oz-in
Continuous Stall Current
6.8 A
Continuous Stall Torque
65 oz-in / 46 N-cm
Maximum Recommended Speed
6000 RPM
Peak Current
72 A
Peak Torque
727 oz-in / 513 N-cm
Rated Continuous Current
8.6 A
Rated Continuous Torque At 25°c
81 oz-in / 57 N-cm
Rated Continuous Torque At 40°c
72 oz-in / 51 N-cm
Rated Power Output
179 Watts
Rated Speed
3000 RPM
Rated Terminal Voltage
31.9 V
Terminal Resistance ± 10%
0.850 Ohms
