VACII D11

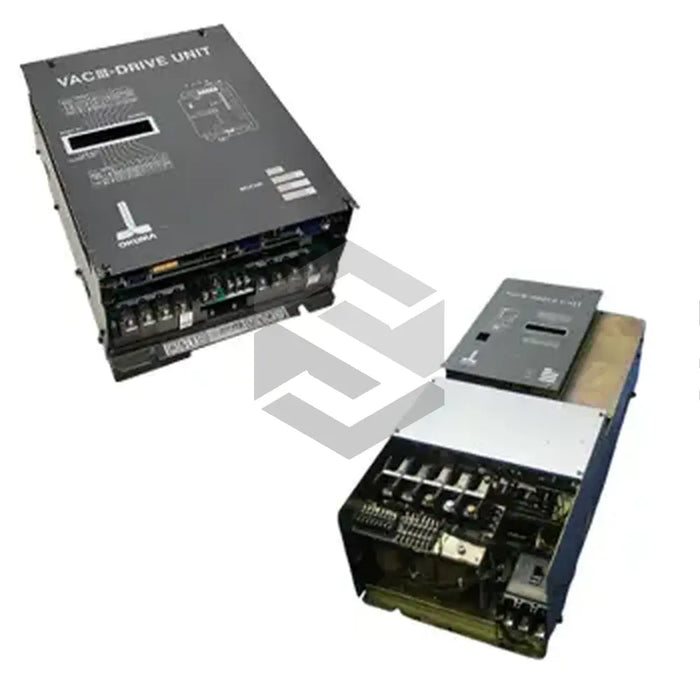

The VACII D11 from Okuma is a high-performance spindle drive unit in the VAC Spindle Drives series, engineered for demanding industrial automation environments. This drive unit model VACII-D11 features an advanced Control Pcb configuration with both VAC board II and VAC card 1 modules onboard, providing robust signal processing and precise control. Power is delivered through the integrated Power supply unit D11A, ensuring stable voltage regulation across the system. Safety is enhanced by the SMP32 warning fuse, designed to interrupt power in fault conditions and protect downstream components. With its compact footprint and modular design, the VACII D11 drive balances power density and serviceability for modern CNC and spindle applications.

The VACII D11 drive exhibits detailed technical capabilities to match its rugged build, starting with the configurable Setting Switches (SW1, SW2, SW3, SW4 DIP) that allow fine-tuning of operational modes without external programming. Speed and load performance are monitored via built-in Adjustment Potentiometers: the SM (speed meter) potentiometer provides real-time speed calibration, while the LM (load meter) potentiometer offers precise load sensing adjustments. Mechanical integration is simplified through dedicated mounting provisions: Mounting Holes Lower: Round end slit x 2 and Mounting Holes Upper: Slot x 2 ensure secure fastening in both flange and foot configurations. The onboard control electronics carry the Okuma Pcb Name: VAC-BOARD-II and the unique Okuma Pcb Part Number: E4809-045-140, facilitating straightforward replacement and firmware updates. All printed circuit boards are rated for continuous industrial operation, with component layouts optimized for thermal dissipation and electromagnetic compatibility.

Operational reliability and maintainability are central features of the VACII D11. The combination of VAC board II and VAC card 1 enhances signal integrity, reducing noise and improving spindle responsiveness under heavy load cycles. The Power supply unit D11A is engineered for minimal ripple and transient suppression, safeguarding sensitive control circuits. In the event of an overcurrent or short-circuit event, the SMP32 warning fuse will isolate the fault, preventing damage to the drive or connected machinery. The DIP SW1-SW4 switches permit on-site mode selection—ranging from soft-start sequences to torque-limited operations—while the dual SM and LM potentiometers enable on-the-fly adjustments to match process requirements. Seamless access to mounting holes and service panels reduces downtime during routine inspections or field servicing.

Integration into larger automation systems is straightforward thanks to the VACII D11’s adherence to industry-standard mechanical and electrical interfaces. Engineers can quickly mount the unit using the provided lower and upper holes and connect to existing power and control networks via the documented PCB connectors. The drive supports synchronized operation with multiple spindles or axes, making it ideal for machining centers, milling spindles, and automated assembly lines. With its combination of modular electronics, configurable DIP switches, and trusted Okuma reliability, the VACII D11 spindle drive delivers the precision and durability required for advanced manufacturing and production environments.
