S image of VACON0020-3L-0009-4-R02

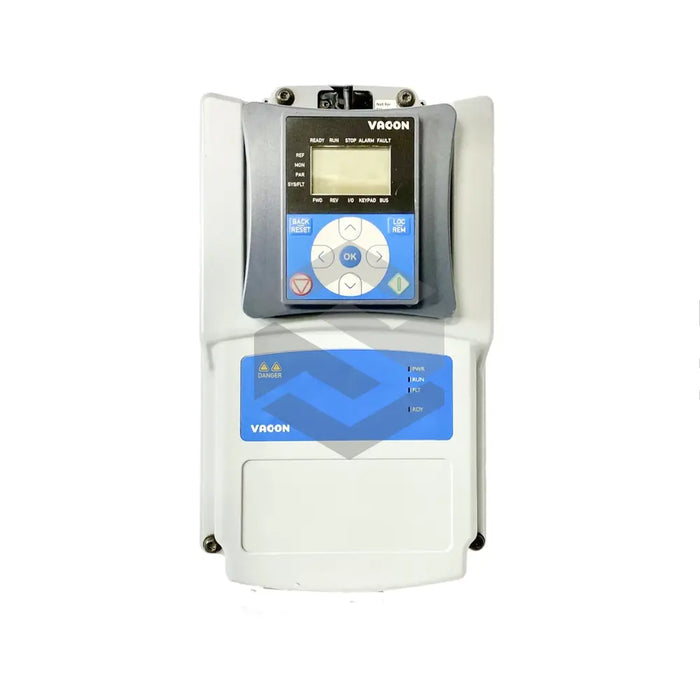

VACON0020-3L-0009-4-R02

by Danfoss
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The VACON0020-3L-0009-4-R02 from Danfoss offers a rated motor power of 5 HP and an input voltage range of 380–480 V AC. Part of the VACON 20 Low Voltage Drives series, this frequency converter features an IP20 enclosure protection class and a switching frequency of 4 kHz.

It supports three-phase input with 9 A rated current and delivers output frequencies up to 320 Hz within an operating temperature of -10 °C to +50 °C. The compact unit measures 100×255×109 mm and weighs 0.99 kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Braking Chopper

Integrated

Dimensions (w X H X D)

100 x 255 x 109 mm

Enclosure Protection

IP20

Frame Size

MI3

Input Frequency

45–66 Hz

Input Voltage Range

380–480 V AC, 3-phase

Operating Temperature

-10°C to +50°C

Output Current (1.5xin, 1 Min/10 Min)

13.5 A

Output Current (in)

9 A

Output Frequency

0–320 Hz

Rated Power (motor)

5 HP

Switching Frequency (factory Default)

4 kHz

Weight

0.99 kg
