VAK11.2F-EN-U-NNNN

Request a quote

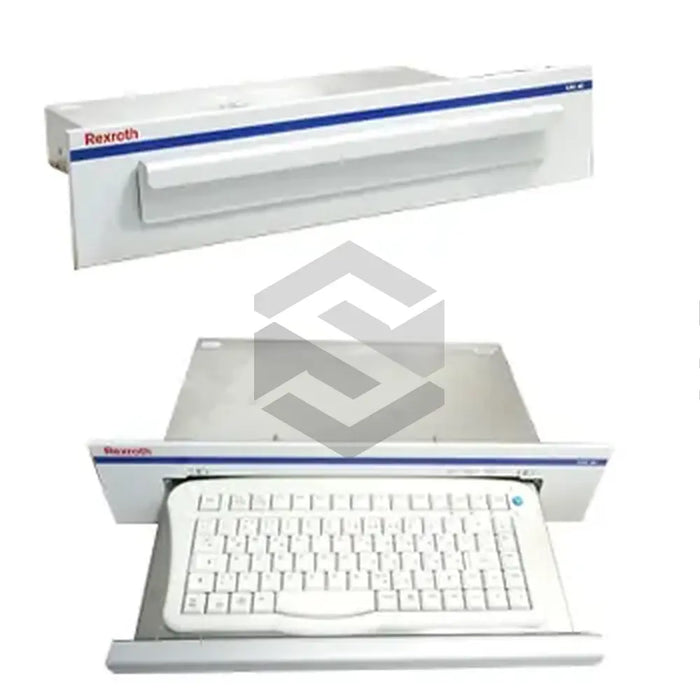

The Bosch Rexroth Indramat VAK11.2F-EN-U-NNNN is a 106-key mountable membrane keyboard specifically designed for industrial use. Featuring an AT compatible PS/2 input and a standard USB interface, this keyboard offers full English language support and includes function, alphanumeric, and variable operator keys. It operates on 5 Volts DC and allows a 5% voltage tolerance. Additional features include a front rated for IP 65 protection and a 1.5-meter connecting cable. Authenticated by CE, UL, and CSA, this light gray keyboard has a vibration resistance of 0.25 g and shock resistance of 5 g. It is designed to operate at temperatures between 5 and 45 degrees Celsius and at an altitude up to 1500 meters. With compact dimensions—140mm (H) x 350mm (W) x 34mm (L)—and weighing just 1 kg, it fits a cut-out of 108 x 318 mm.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: VAK11.2F-EN-U-NNNN
  • Type: Industrial keyboard
  • Keyboard Layout: AT compatible PS/2 foil
  • Total Keys: 106
  • Operating Keys: 85
  • Variable Operator Keys: 4
  • Language: English
  • Extra Features: number pad, keyboard mouse, alphanumeric block
  • Interface: USB
  • Input Voltage: 5 Volts DC
  • Voltage Tolerance: 5%
  • Current Consumption: 30 milliamps
  • Power Consumption: 0.15 Watts
  • Protection Rate: IP 65
  • Cable Length: 1.5 meters
  • Color: Light Gray
  • Certifications: CE, UL, CSA
  • Weight: 1 kilogram
  • Dimensions: 140mm x 350mm x 34mm
  • Install Cut-Out: 108mm x 318mm
  • Vibration Resistance: 0.25 g
  • Shock Resistance: 5 g
  • Operating Temperature: 5 to 45 degrees Celsius
  • Storage Temperature: -20 to 60 degrees Celsius
  • Operating Humidity: 5 to 85%
  • Storage Humidity: 5 to 75%
  • Operating Atmospheric Pressure: 86 to 106 kPa
  • Storage Atmospheric Pressure: 70 to 106 kPa
  • Installation Altitude: Up to 1500 meters.
