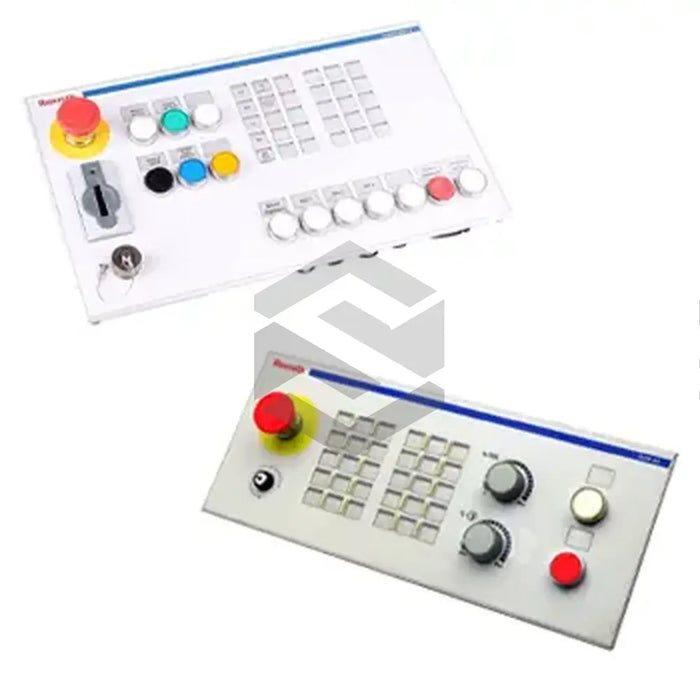

manufacturer image of VAM40.2-PB-NA-TA-TA-VB-MA-1608-NN

VAM40.2-PB-NA-TA-TA-VB-MA-1608-NN

by Bosch Rexroth Indramat
$3,980.86 - $3,980.86
$3,980.86
$3,980.86 - $3,980.86
$3,980.86
In Stock, Ships 1 - 2 Days
Bosch Rexroth Indramat's VAM40.2-PB-NA-TA-TA-VB-MA-1608-NN is a high-quality machine control panel, offering pre-set performance parameters for automation challenges. Operating on a 24V DC voltage supply and a maximum current of 1.7A, this panel from the VAM series is typically used with operator and visualization terminals. The panel includes several functional modules including two override rotary switches, machine push buttons, a handwheel, a keyswitch, and an E-STOP for emergency halts. It also features two programmable keypad sets with 15 LED illuminated keys each. With dimensions of 407mm x 169mm x 58mm, the panel weighs 1380g and fits into a 379mm x 141mm mounting cut-out. The front panel, made from aluminium and chemical-resistant polyester foil, guarantees surface protection in demanding industrial environments. The panel complies with IP 54 and NEMA's Type 1 protection standards and also has a mounting depth of 102mm when used with a PROFIBUS DP plug.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Industrial Control Panel
  • Product Line: VAM Control Panel Series
  • Operating Voltage: 24 volts DC
  • Maximum Current: 1.7 A
  • Built-In Features: Two override rotary switches, Machine push buttons, A module with a handwheel, Key Switch, E-Stop button
  • Additional Features: Two keypads with 15 LED illuminated keys
  • Keys Type: Short-stroke, Programmable
  • Frontal Protection: IP 54
  • Protection Type According to NEMA: Type 1
  • Weight: 1380 g
  • Measurements: 407 mm in width, 169 mm in height, and 58 mm in depth
  • Mounting Cut-Out: 379 mm x 141 mm (WxH)
  • Front Panel Material: Aluminum and chemical resistant polyester foil
  • Mounting Depth If a PROFIBUS DP Plug Is Used: 102 mm
