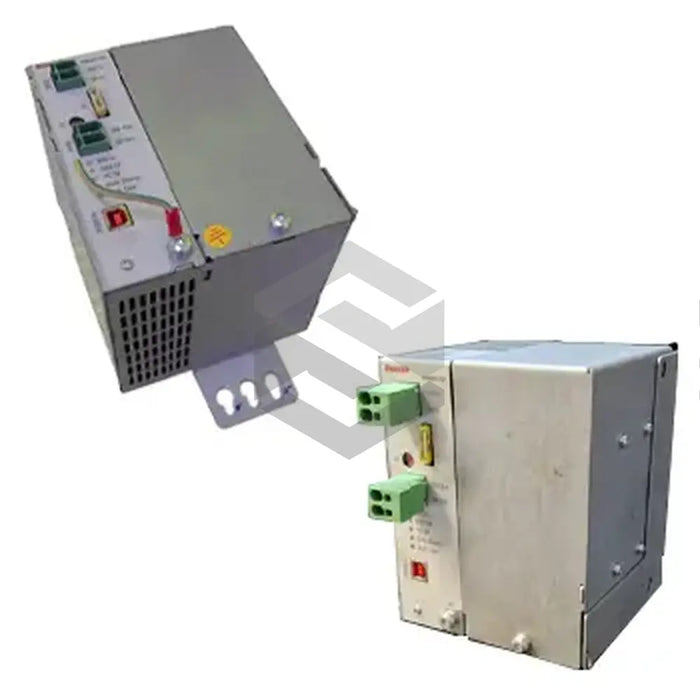

S image of VAU01.1Z-Z24-024-060-NN

VAU01.1Z-Z24-024-060-NN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat VAU01.1Z-Z24-024-060-NN, a 24V DC IndraControl V UPS, is designed for use with the Rexroth Indracontrol VPP 21.1 and VPP 21.2. Its operational conditions require it to comply with a vibration frequency range of 10-150Hz, as outlined in EN 60068-2-6 regulation, and it operates at an altitude of up to 3000 meters as per EN 61131-2. This device is equipped with a dual voltage input rating of DC 24 V + AC 100...240 V, 50/60 Hz. It functions ideally within a temperature range of +5 degrees Celsius to +45 degrees Celsius and is designed to effectively bridge time up to 3 minutes. It weighs approximately 1 kg, has an IP20 enclosure and a power consumption of 60 W, with an inbuilt short circuit protection mechanism. This UPS features nominal output voltage of 24V, a switching time under 1ms, and complies with the noise immunity regulation in EN 60 61000-6-2.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

24V DC IndraControl V UPS

Intended Use

Rexroth Indracontrol VPP 21.1 and VPP 21.2

Maximum Vibration Frequency

10 Hertz to 150 Hertz (EN 60068-2-6)

Input Voltage Rating

DC 24 V + AC 100...240 V, 50/60 Hz

Air Pressure

Up to 3000 meters above sea level (EN 61131-2)

Ambient Operating Temperature

+5 degrees Celsius to +45 degrees Celsius

Storage Temperature

-20 degrees Celsius to +60 degrees Celsius

Nominal Output Voltage

DC 24V

Switching Time

Less than 1 ms

Maximum Bridging Time

3 minutes

Operating Climatic Class

3k3 (EN 60721)

Maximum Allowable Humidity

80% (at 25 degrees Celsius)

Switch On Threshold Voltage

15.5 V ±5 %

Switch Off Threshold Voltage

20.2 V ±5 %

Weight

Approximately 1 kg

Enclosure Rating

IP 20

Maximum Power Consumption

60 W

Protection Features

Short-circuit protection

Overvoltage Category

2 (EN 60664-1)

Design

Control unit for central UPS

Noise Immunity

In accordance with EN 60 61000-6-2
