VCH08.1EAB-064ET-A1D-064-CS-E4-PW

Original price $8,663.88 - Original price $8,663.88
Original price
$8,663.88
$8,663.88 - $8,663.88
Current price $8,663.88
In Stock, Ships 1 - 2 Days
Request a quote

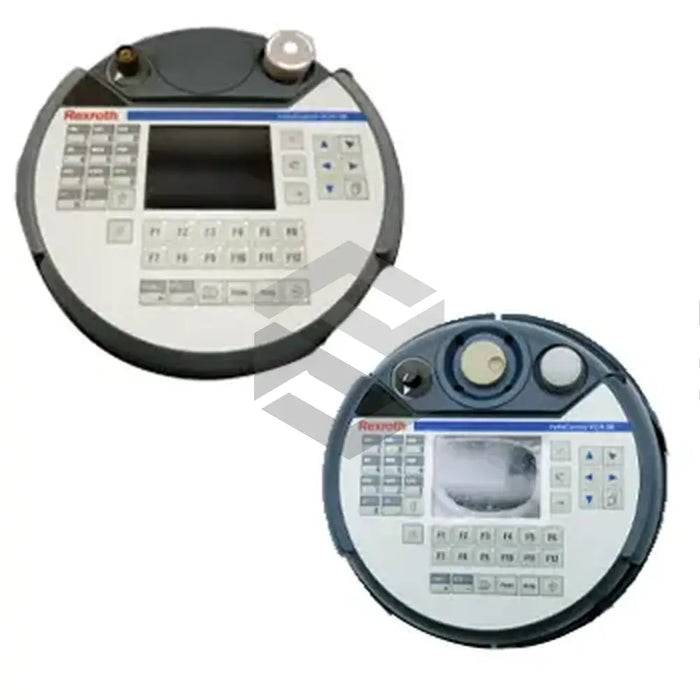

Bosch Rexroth Indramat's VCH08.1EAB-064ET-A1D-064-CS-E4-PW is a highly rated, portable human-machine interface (HMI) known for its intuitive and ergonomic design. With a sturdy plastic housing that aligns with the IP 65 protection standard, it ensures reliable performance even in challenging conditions, being safeguarded against water splashes and dirt particles. Frequently used in machine handling and manufacturing cell applications, this device operates efficiently with a 48W power supply and 24VDC input. It boasts a 3.8-inch liquid crystal display, a built-in 64MB flash memory, and a user-friendly keyboard inclusive of 12 LED keys and 40 operating keys. The device, enabling single-handed operation, also includes a USB port for service tasks, a two-circuit stop button, and a three-position double-circuit enabling switch for enhanced safety. The automatic activation of a stop function when connecting or disconnecting the HMI panel further implies securing the operator's safety.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Portable Human Machine Interface (HMI)
  • Applications: Machine handling, Gantry, Line transfer, Manufacturing cells
  • Material: Robust Plastic
  • Protection Standard: IP65
  • Weight: 1.2 Kg
  • Display Size: 3.8-inch Liquid Crystal Display
  • Memory: 64 MB Flash
  • Control Type: Keyboard
  • Number of Keys: 12 LED keys, 40 operating keys
  • Power Requirement: 48W, 24 VDC
  • Special Features: USB port, Two-Circuit Stop button, Three-Position Double Circuit Enabling Switch
  • Accessibility: Single-handed operation through shift key
  • Safety Functions: Stop function automatically activated during connection/disconnection
  • Additional features: Equipped with a handwheel.
