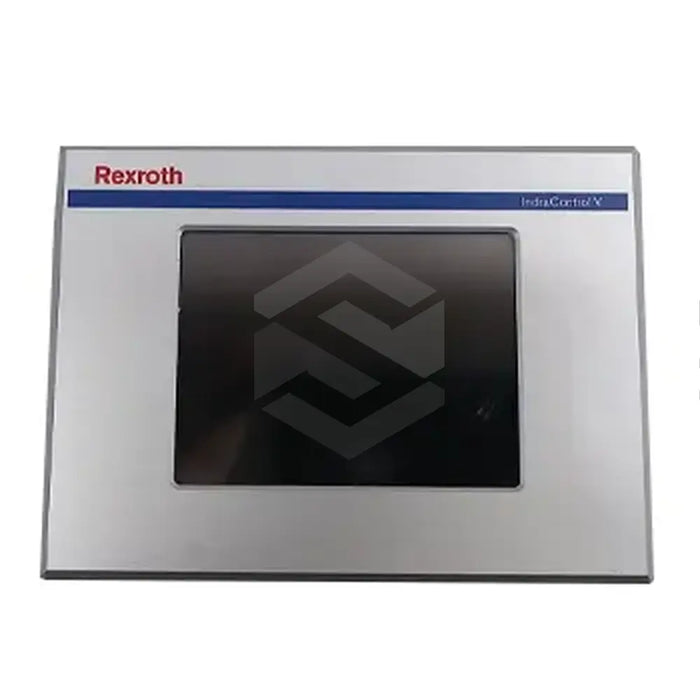

P image of VCP11.2ECN-003-NN-NN-PW

VCP11.2ECN-003-NN-NN-PW

by Bosch Rexroth Indramat
$1,862.25 - $7,072.50
$7,072.50
$1,862.25 - $7,072.50
$7,072.50

In Stock, Ships 1 - 3 Days

The Bosch Rexroth's IndraControl VCP11 graphics-oriented terminal, VCP11.2ECN-003-NN-NN-PW, is light with a weight of 500 g. It utilizes a 4-wire analogue resistive type touchscreen and a TFT display featuring a 320 x 240 pixel resolution, 5 shades of grey colour, and a reading angle of 80o. The display measures 57.6 x 76.8 mm with a brightness rate of 90 cd/m2 and a half-life rating of 30,000 hours for backlighting. Operating on a supply voltage of 24 Volts DC, it consumes 0.25 A of current at nominal voltage and 0.35 A at a maximum of 30 Volts with an overall power rating of 6 W. Equipped with integrated polarity reversal protection and a 100 mA/output USB interface, it also comes with pre-installed firmware, an array of connection ports, and 3 MB RAM plus 16 MB ROM. Display and front panel upgrades are not available.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Model

VCP11.2ECN-003-NN-NN-PW

Manufacturer

Bosch Rexroth

Total Weight

500 g

Display Type

TFT

Pixel Resolution

320 x 240

Display Colour

5 shades of grey

Display Reading Angle

80o

Contrast Setting

Temperature-saturated

Backlighting Life Rating

30,000 hours

Display Brightness

90 cd/m2

Display Area

57.6 x 76.8 mm

Supply Voltage

24V (DC)

Residual Ripple

10 % max

Voltage Range

18 ≤ V ≤ 30

Power Consumption (24VDC)

0.25 A

Power Consumption (max 30V)

0.35 A

Connected Load Power

6 W

Protection

Integrated protection against polarity reversal

USB Interface Current Output

100 mA/output (max)

Installed Firmware

Yes

Connectivity

RJ45 female port, USB type-A female connector, 9 and 25 pins D-SUB male/female connector strips, 5-Pin Phoenix COMBICON male connector strip and a male/female 3-Pin Phoenix COMBICON connector strips

RAM

3 MB

ROM

16 MB

Upgrade Option

No upgrade option for display and front panel
