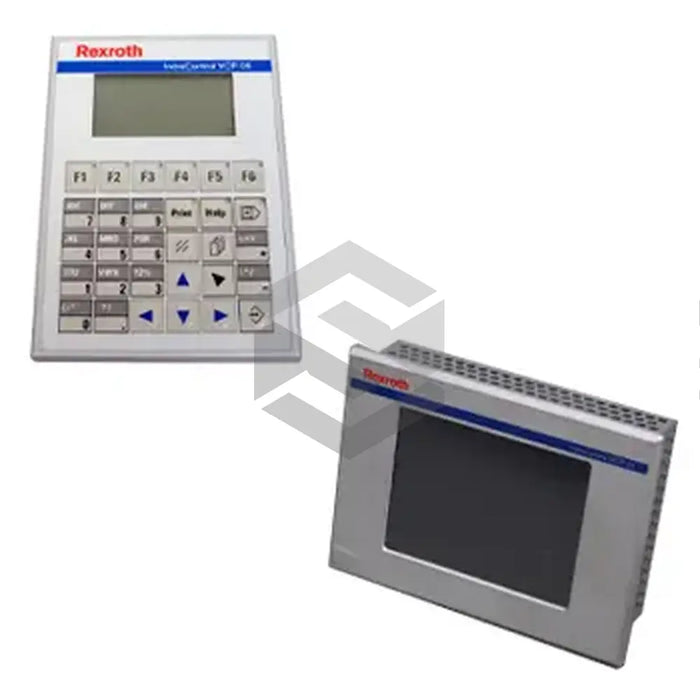

series image of VCP11.2ECN-004-NN-WN-PW

VCP11.2ECN-004-NN-WN-PW

by Bosch Rexroth Indramat
Request a quote
The VCP11.2ECN-004-NN-WN-PW is a small operator terminal created by Bosch Rexroth Indramat. Its primary use is for controlling and operating machinery, specifically machine tools. The terminal is equipped with pre-loaded firmware and must remain in its original condition. It requires a cold environment for optimal operation, strictly within EMC regulations. The terminal has an 11-line code and comes with an 88 x 122mm mounting cutout. It features a four-wire analog resistive touchscreen, with a FSTN display of 320 x 240 pixels and a 90° reading angle. Also included are a serial interface, 4MB memory, galvanized steel sheet enclosure, 24VDC supply voltage, and ARM9 CPU of 200MHz. It must be stored within -20°C to 60°C. Installation requires 30mm clearance for air circulation. The terminal's touchscreen cannot be operated with sharp objects, and the Ethernet interface requires a CAT6+ twisted-pair cable. The terminal also features diagnostic side LEDs.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: VCP11.2ECN-004-NN-WN-PW
  • Device Type: Small operator terminal
  • Preloaded Firmware: Yes
  • Usage: Operating and controlling machines and installations
  • Deployment: Machine tools
  • Temperature Restrictions: Cannot operate in extremely high temperatures
  • EMC Compliance Necessary: Yes
  • Device Key: 11 line code
  • Mounting Cutout Dimension: 88 x 122mm (H x W)
  • Screen Technology: 4-wire analog resistive touchscreen
  • Display Type: FSTN display
  • Display Resolution: 320 x 240 pixels
  • Reading Angle: 90°
  • Interface: Serial interface
  • Application Memory: 4MB
  • Enclosure Material: Galvanized steel sheet
  • Supply Voltage: 24VDC with a 10% Maximum Residual Ripple
  • Central Processing Unit: RISC ARM9
  • Clocking frequency: 200MHz
  • Storage and Transport Temperature: Between -20°C and 60°C
  • Installation Requirement: 30mm clearance distance for air circulation
  • Installation Note: Uniform tightening of grub screws for protection
  • Operation Restriction: No sharp or pointed objects on touchscreen
  • Ethernet Interface: CAT6+ twisted-pair cable
  • Additional Features: Diagnostic LEDs on side
