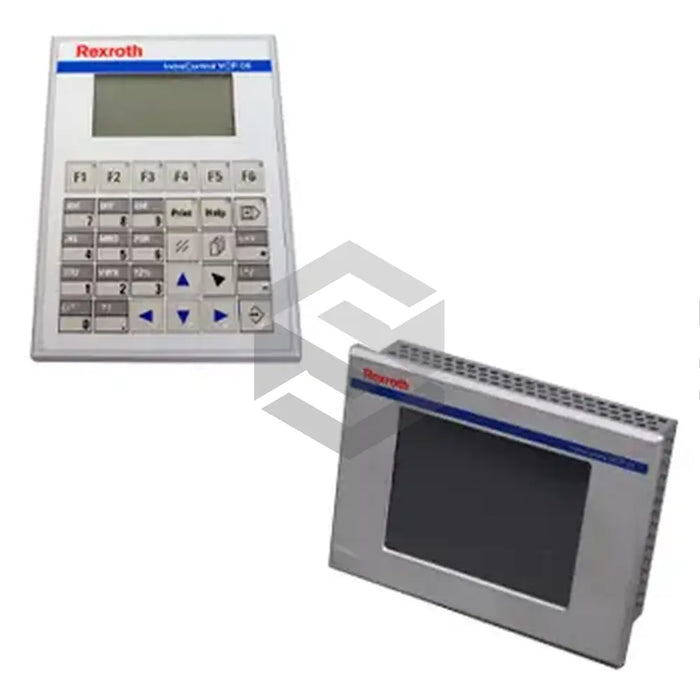

series image of VCP20.1BUN-256RS-NN-PW

VCP20.1BUN-256RS-NN-PW

by Bosch Rexroth Indramat
$1,049.97 - $1,049.97
$1,049.97
$1,049.97 - $1,049.97
$1,049.97
In Stock, Ships 3 - 5 Days
The VCP20.1BUN-256RS-NN-PW, a product of Bosch Rexroth Indramat, is an LCD-module operator visualization terminal belonging to line 20 with a design type of 1. This device features a 34-key keyboard integrated into the front panel and a 240 x 128 pixel resolution display. It operates using a Z84 central processing unit (CPU) at a speed of 10 MHz, and communicates and transfers data via a serial interface. Designed for versatility, it can be mounted as needed and operates optimally at temperatures between 32 and 122 oF and relative humidity from 10% to 95% without condensation. The memory capacity is 256 kB, and it handles a voltage rating from 19.2 to 30.2 V DC, consuming maximum power at 0.4 A. With an operation viewing angle of 90 degrees, the terminal's LCD record is rated up to 3000 minutes, with a half-life of 600 minutes for its backlight.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: VCP20.1BUN-256RS-NN-PW
  • Product Type: LCD-module operator visualization terminal
  • Keyboard Design: 34 keys integrated on the front panel
  • Display Resolution: 240 x 128 pixels
  • Design Type: 1
  • Product Line: 20
  • Interface Type: Serial interface
  • CPU Type: Z84
  • CPU Speed: 10 MHz
  • Memory Size: 256 kB
  • Operating Temperature: 32 – 122 oF (0 – 50 oC)
  • Relative Humidity: 10 to 95 per cent, no condensation
  • Pollution Degree Rating: 1
  • Overvoltage Category: II
  • Voltage Rating: 19.2 V/30.2 V DC
  • Current Rating: 0.4 A
  • Power Consumption: Max at 0.4 A current
  • Supply Voltage: 24 Volts
  • Maximum Residual Ripple: 10 per cent
  • Reading Angle: 90 degrees
  • LCD Lifetime: 3000 minutes
  • Backlight Half-life: 600 minutes
  • Display Area Dimensions: 131 mm (H) x 72 mm (W)
  • Design: Standard
  • Firmware: Must be ordered separately
