series image of VCP20.1BUN-768IB-NN-PW

VCP20.1BUN-768IB-NN-PW

by Bosch Rexroth Indramat
$1,200.00 - $1,200.00
$1,200.00
$1,200.00 - $1,200.00
$1,200.00
In Stock, Ships Today

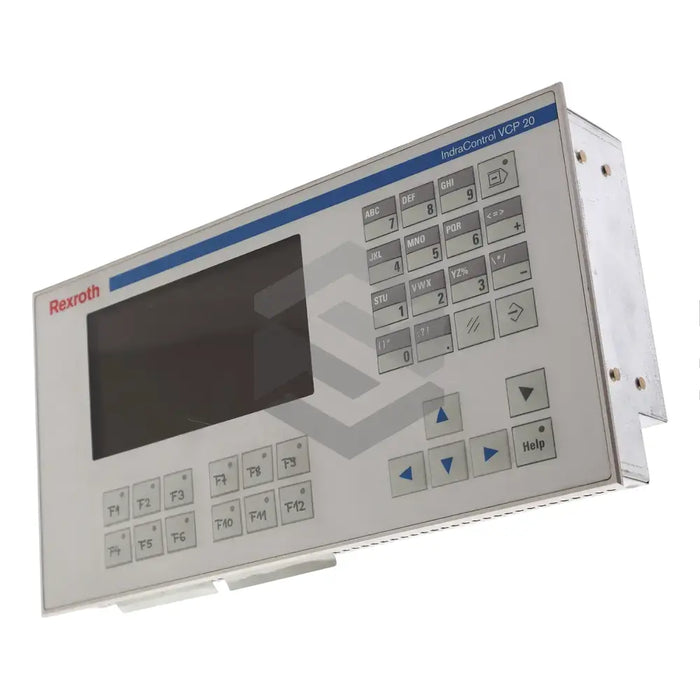

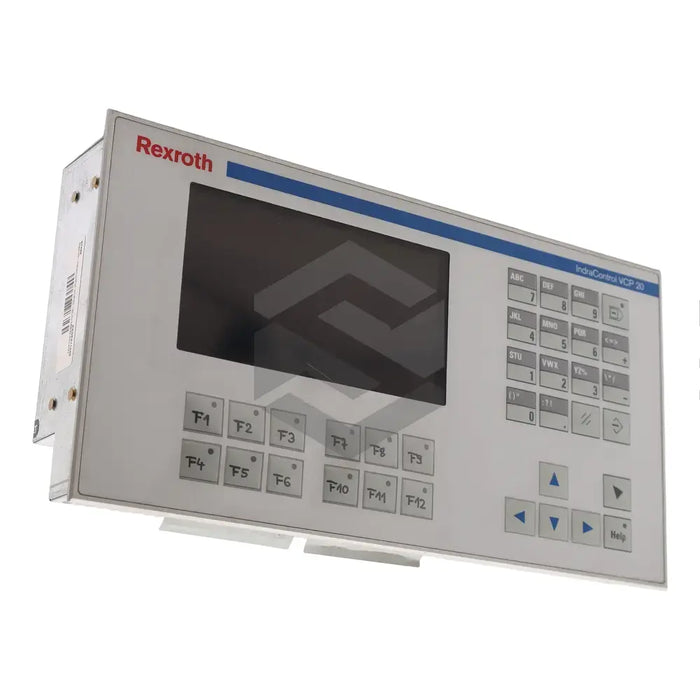

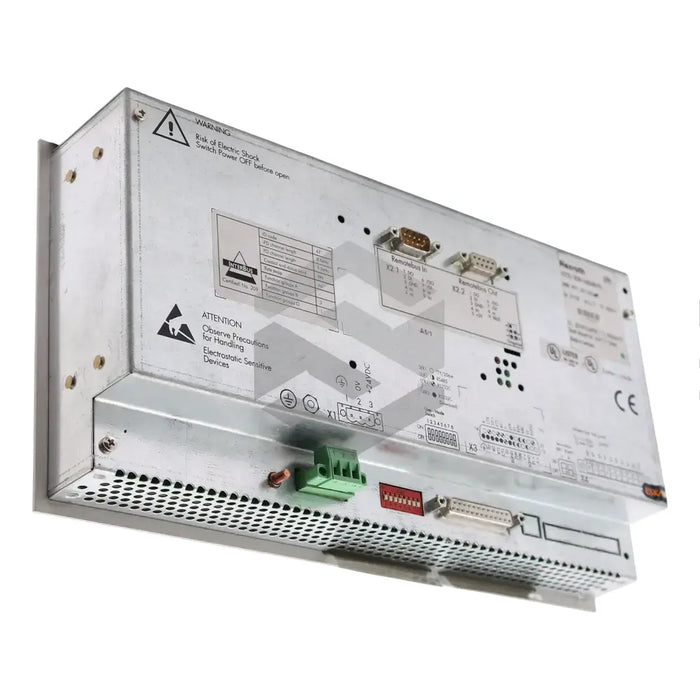

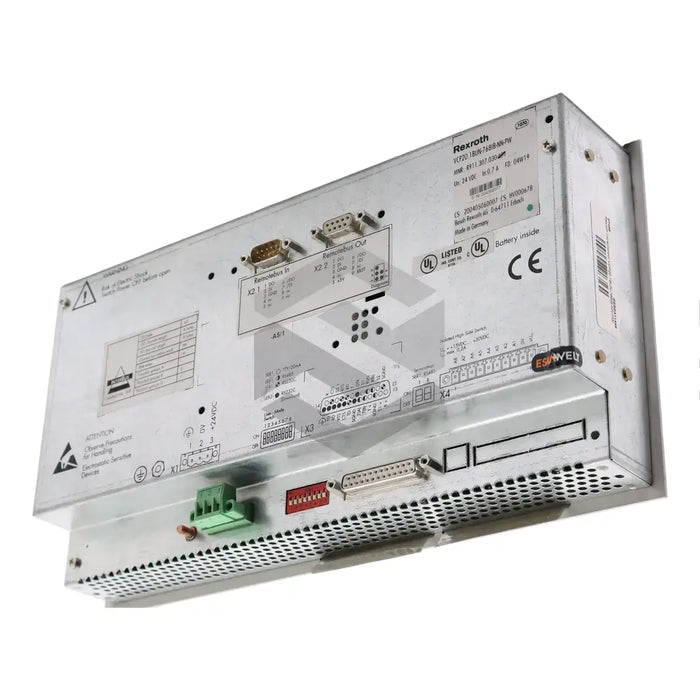

The VCP20.1BUN-768IB-NN-PW is a compact and intuitive operator terminal from automation equipment manufacturer, Bosch Rexroth Indramat. Well-suited for various environments, the device features a circumferential rear seal and robust housing constructed from galvanized steel and varnished aluminum. The terminal houses a keyboard, capable of approximately 1 million switching cycles, offering tactile feedback with short-stroke keys. Equipped with a CCFT backlit display providing 240 x 180 pixel resolution, the terminal offers a display area of 131 mm x 72 mm with a 90-degree viewing angle. Additional features include a specially reloadable operating system, VI composer programming software, and protection against polarity reversal. The device weighs 1.4kg, meets IP 54 standard ingress protection on the front and IP 20 on the back, and has a 60 mm mounting depth when used with a connector. The device operates on a minimum voltage of 19.2 V and can withstand a peak current of 3 A.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Operator Terminal
  • Model Number: VCP20.1BUN-768IB-NN-PW
  • Installation Type: Compact
  • Operating System: Reloadable
  • Software: VI composer
  • Keyboard Life Cycle: 1 million switching cycles
  • Weight: 1.4 kg
  • Ingress Protection Standard (Front Side): IP 54
  • Ingress Protection Standard (Backside): IP 20
  • Mounting Depth (with connector): 60 mm
  • Key Type: Short-stroke keys with tactile feedback
  • Material: Galvanized steel with varnished aluminum
  • Display Type: CCFT backlit display
  • Resolution: 240 x 180 pixels
  • Display Color: White
  • Display Angle: 90 degrees
  • Lines Display: 16 lines
  • Pixel Size: 0.49 mm x 0.49 mm
  • Display Area: 131 mm x 72 mm (H x W)
  • Polarity Reversal Protection: Yes
  • Peak Current: 3 A
  • Minimum Voltage: 19.2 V
  • Chemical Protection: Polyester foil coating
