VDP16.3DBN-D1-NN-NN

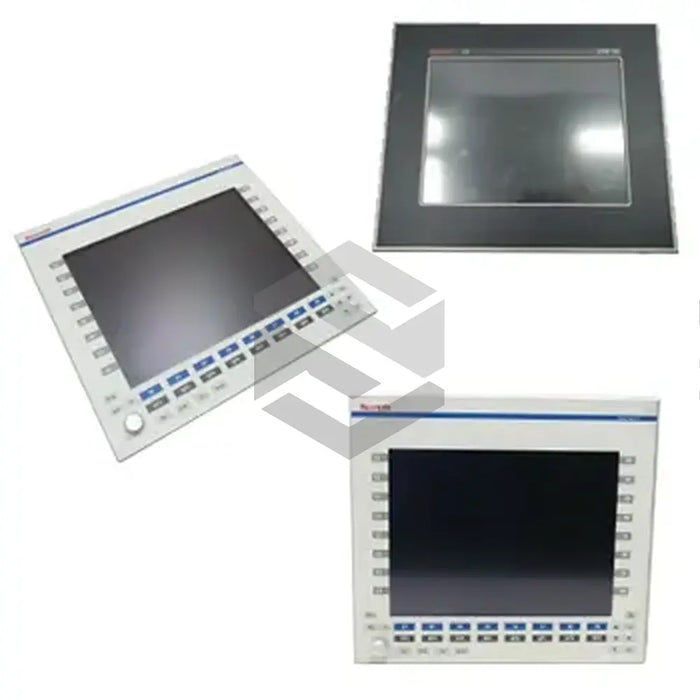

The operator terminal VDP16.3DBN-D1-NN-NN is a premium human 6machine interface manufactured by Bosch Rexroth Indramat and designed as part of the VDP IndraControl Panels series. This robust panel features a Front Panel: A Touch Screen with a 12-inch display that delivers high-contrast visualization in demanding industrial settings. The unit incorporates an intuitive Control Panel Interface: CDI alongside extruded membrane keys grouped into machine, operator, and function zones for rapid command entry. Although the panel’s Other Design slot is currently Not Equipped, the architecture allows future expansion and customization to meet evolving automation needs. Housed in a compact footprint, this screen panel balances ergonomic operator comfort with industrial-grade durability.
Performance is anchored by a Nominal Voltage: 24 VDC power supply, supported by four front-panel LED indicators monitoring Voltage, Temperature, HDD, and UPS status in real time. To mitigate power interruptions, Bosch Rexroth recommends pairing the terminal with an appropriate external UPS and control cabinet PC. The display leverages an XVID image interface connected via standardized RJ45 cable, while local I/O is addressed through 4 USB ports and the embedded CDI interface. Compliance with dual protection categories IP20 and IP65 ensures resistance to dust ingress and water jets, and the terminal carries UL, CSA, and CE certifications for global deployment. Connectivity can be extended to up to four operator terminals per control cabinet PC using a single Y-repeater line, simplifying network topology in multi-station installations.
Built for continuous operation in temperatures from +5 0C to +45 0C and relative humidity ranging 5% to 85%, the VDP16.3DBN-D1-NN-NN withstands shocks and vibration typical of food processing, printing, machine tooling, and wood processing industries. The rugged enclosure finished in standard RAL-7035 light gray affords both corrosion resistance and visual consistency across control panels. The design is optimized for rapid commissioning 6once mounted and cabled, the unit is immediately operational without further configuration. With a comprehensive one-year warranty, this Bosch Rexroth Indramat terminal delivers dependable performance and seamless integration into existing IndraControl automation architectures.
