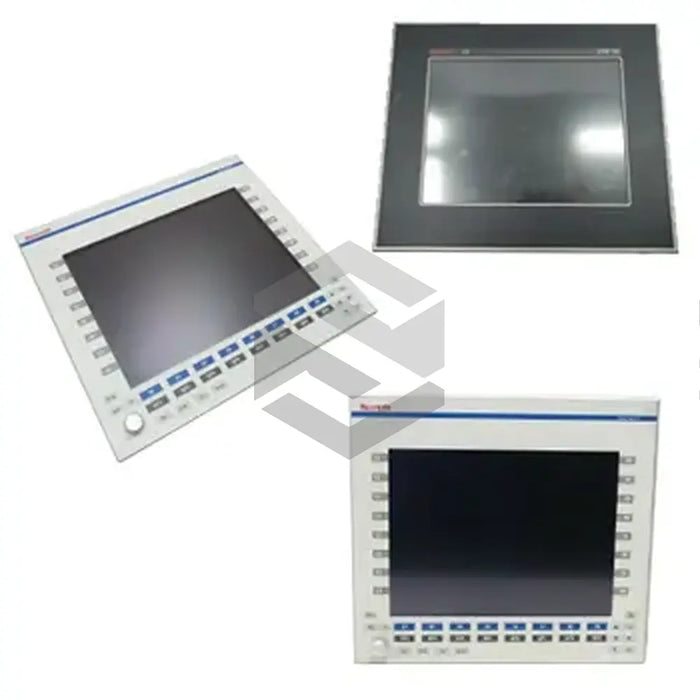

manufacturer image of VDP40.3DFN-D1-NN-MX

VDP40.3DFN-D1-NN-MX

by Bosch Rexroth Indramat
Request a quote
The VDP40.3DFN-D1-NN-MX operator terminal hails from Bosch Rexroth's VDP 40 series, known for their durable instances of human-machine interfaces designed for stringent industrial demands. The VDP40.3DFN-D1-NN-MX features a 15-inch capacitive touchscreen with 16 machine function keys. It acts as a PC-based operator terminal when combined with a control cabinet PC with a CDI interface, simplifying data exchange using a standard RJ45 connector. Its performance peaks in surroundings of 5°C to 45°C with a relative humidity of 5% to 85%. An external 24 Volts DC power source is required for operation. The terminal offers an ingress protection of IP 20, making it appropriate for liquid-free environments. The space-efficient design offers varied mounting configurations to optimise functionality within constrained spaces.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Series: IndraControl VDP 40
  • Product Type: Operator Terminal
  • Model: VDP40.3DFN-D1-NN-MX
  • Screen: 15 inch touchscreen
  • Machine Function Keys: 16
  • Interface: CDI with RJ45 female connector
  • Additional Interfaces: Screen Interface (XVID), Data Interface (XSER)
  • Optimal Surrounding Temperature: 5-45 degrees Celsius
  • Optimal Humidity: 5-85 percent (non-condensing)
  • Power Source: External source supplying 24 Volts DC
  • Ingress Protection: IP 20
  • Screen Size Range: 12-22 inches
  • Mountability: Space-spacing characteristics
  • Input Mode: Capacitive touchscreen or keyboard
