VDP80.1FKN-C1-NN-EN

Original price $6,541.50 - Original price $6,541.50
Original price
$6,541.50
$6,541.50 - $6,541.50
Current price $6,541.50
In Stock, Ships 3 - 5 Days
Request a quote

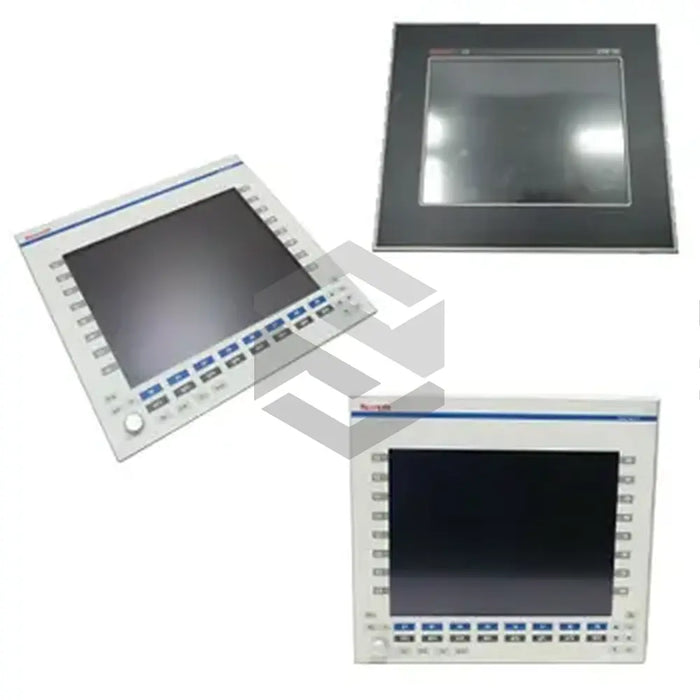

The Bosch Rexroth Indramat VDP80.1FKN-C1-NN-EN machine operative panel is designed for CNC universal milling in industrial applications. Its graphite-gray housing should include a ventilation fan and filter to prevent dust build-up. Among its features are an LCD with backlighting and 640 (H) x 480 (V) pixel resolution, a 25-pin D-SUB J14 connector for handwheel connection, and pre-printed bitmap symbols on the labeling strips. Having an IP 54 class protection for system inputs and an IP 00 for system outputs, this device is to be operated within -20°C to 60°C ambient temperature range. A heat exchanger may be required if ambient temperatures are high. The emergency stop switch complies with ISO 13850. Battery replacements should be done carefully and only with the specific battery type suggested by the manufacturer. With a 10.4 inches diagonal display size, the panel includes multiple connectors and a USB interface for flash drive connectivity.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: VDP80.1FKN-C1-NN-EN
  • Grounding Requirement: Yes
  • Housing Requirements: Fan and Filter
  • Protection Class: IP 54 (inputs), IP 00 (outputs)
  • Display Type: LCD with backlighting
  • Resolution: 640(H) x 480(V) pixel
  • Connector J14: 25-pin with D-SUB connection
  • Label Format: Bitmap
  • Color: Graphite-gray
  • Usage: CNC universal milling
  • Operating Environment: Industrial applications only
  • Storage and Transportation Temperature: -20°C to 60°C
  • EN Compliant: Yes
  • EMERGENCY Stop Switch Standard: ISO 13850
  • Battery Replacement: Carried out without damaging electrical parts
  • Product Dimensions: 420mm (Length), 327mm (Height)
  • Oscillation: 0.5g maximum
  • Display Size: 10.4 inches (diagonal)
  • Connector Types: Two four-pin, one two-pin
  • USB Interface Usage: Flash drive connection only
