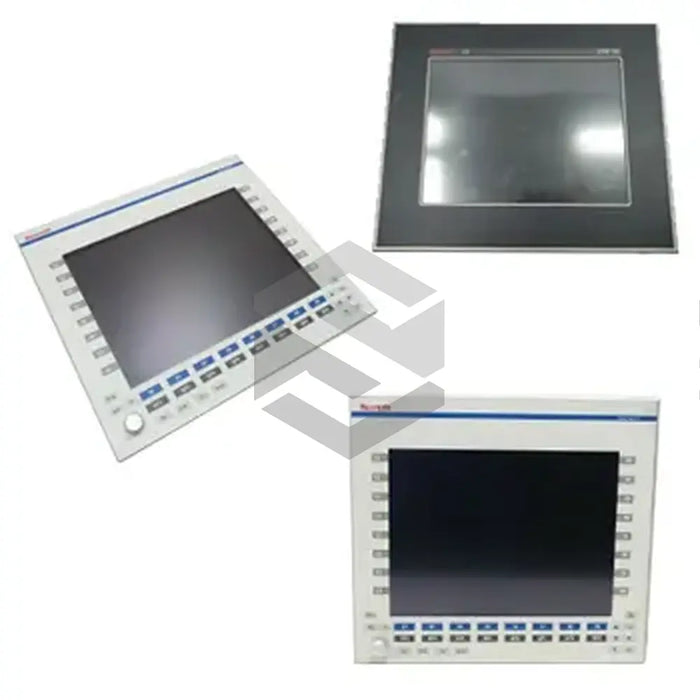

S image of VDP81.1FKN-C1-NN-EN

VDP81.1FKN-C1-NN-EN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The VDP81.1FKN-C1-NN-EN is a cutting-edge Human Machine Interface (HMI) panel produced by Bosch Rexroth, a renowned constructor of automation components. Designed to control servo motors in machinery ranging from food processing systems to machine tools, this HMI panel offers a noteworthy operating range of 0-45°C. Adhering to ingress protection standards of IP 54 (front) and IP 20 (back), the robust build is also able to withstand oscillations up to 0.5 G, making it well-suited for environments with 75% or lower relative humidity. The 10.4-inch display provides 262,144 colors and operates on the a-Si TFT Active Matrix system. Connectivity options include USB interfaces for interaction with VAM keyboards and HMI cables for servo motor communication via the HCQ02 unit. Lastly, it operates efficiently with a nominal input voltage of 24V DC and a current of 0.3 A.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

VDP81.1FKN-C1-NN-EN

Product Type

Human Machine Interface (HMI) panel

Intended Use

Machine automation, Servo motor control

Operating Temperature

0 ᵒC to 45 ᵒC

Compliance

Ingress protection standards IP 54 (front), IP 20 (backside)

Sustainable Oscillations

Up to 0.5 G

Recommended Humidity

Below 75%

Display Area

211.2 mm x 158.4 mm (H x W)

Diagonal Display Size

10.4 inches

Display Type

a-Si TFT Active Matrix

Color Availability

262,144 colors

Backlighting Cycle Life

50,000 hours

Display Resolution

640 x 480 pixels

Connection Interfaces

USB port, Power supply interface, Data exchange interface

Keyboard Connection

Connected to the VAM keyboard through a USB interface

HMI Cable Connection

Can connect the device with the HCQ02 unit

Input Voltage Requirement

24 V DC

Operating Current

0.3 A nominal current
