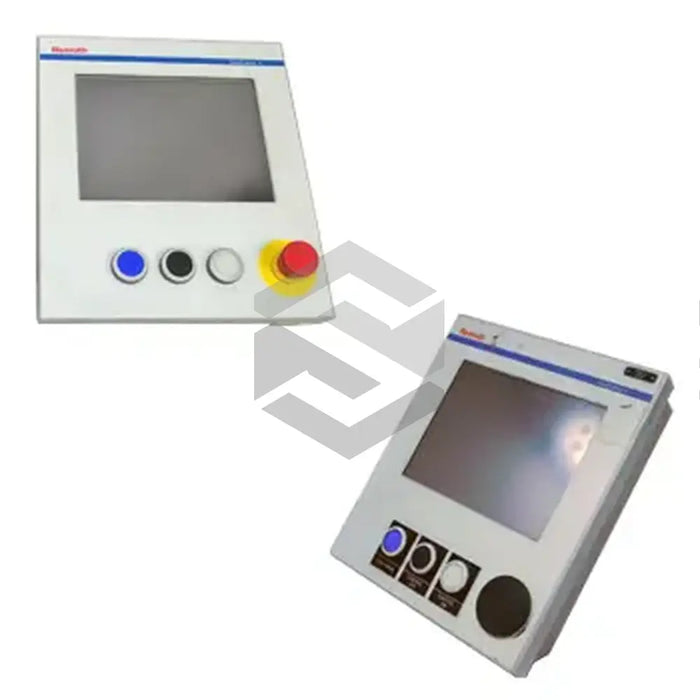

S image of VEP30.4AON-512NN-MAD-1G0-NN-FW

VEP30.4AON-512NN-MAD-1G0-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat's VEP30.4AON-512NN-MAD-1G0-NN-FW is an economically and practically efficient PC-based HMI operator panel, suitable for diverse industrial operations including recipe management and machine start-up. Powered by a 600 MHz Celeron CPU and equipped with a Windows OS, this device offers a bright 8ft 4-inch TFT display supporting an SVGA resolution of 800x600. It is composed of a 512MB RAM, 1GB flash memory, and two compact flash sockets. Operating through touch screen input, it features three USB and one RS 232 serial ports. Measuring at 200mm x 296mm x 53mm and weighing 2.3kg, the device operates at a nominal voltage of 24 volts DC, with power consumption rated at 36 Watts. The device is designed to operate effectively within a temperature range of +5 to+45 oC and 5%-85% relative humidity, adhering to EN 61131-2 standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Embedded PC-based HMI Operator Panel

Processor

Celeron 600 MHz

Operating System

Windows

Display

8ft 4inches Bosch Thin Film Transistor (TFT) Display

Resolution Type

Super Video Graphics Arrays (SVGA)

Resolution

800 x 600

Colour Tone

256.000

Control Mode

Touch screen with on-screen virtual keyboard

Dimensions

200mm x 296mm x 53 mm

Weight

2.3 kg

Communication Interface

Not equipped

Number of USB Ports

3

Number of RS 232 Serial Port

1

Application Memory

512 MB

Flash Size

1 GB

Number of Compact Flash Sockets

2

Nominal Supply Voltage

24 volts DC

Minimum Supply Voltage

19 volts DC

Maximum Supply Voltage

30 volts DC

Power Consumption

36 Watts

Material Protection Category

IP 20

Protection Category at the Front

IP 65

Lowest Operating Temperature Limit

+5 oC

Highest Operating Temperature Limit

+45 oC

Admissible Operating Relative Humidity Range

5% - 85% (EN 61131-2 standards)
