S image of VEP30.4EFN-512NN-MAD-1G0-NN-FW

VEP30.4EFN-512NN-MAD-1G0-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

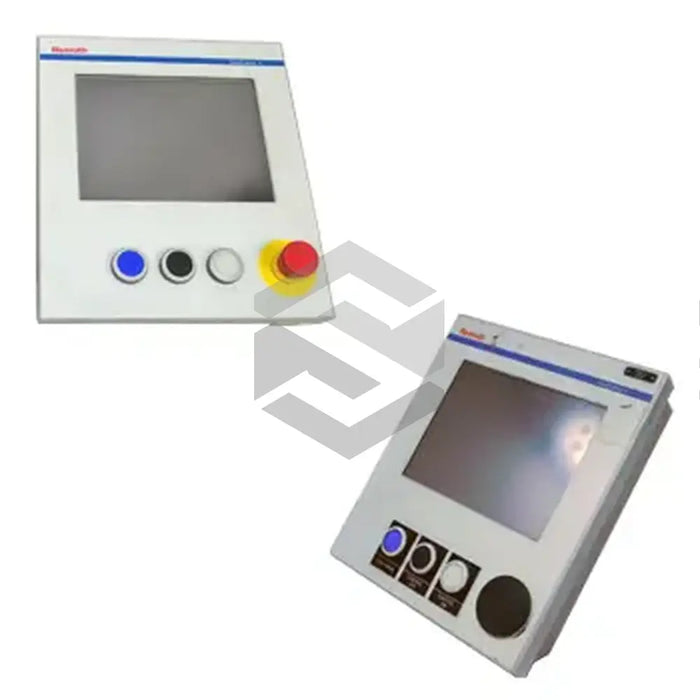

The Bosch Rexroth Indramat VEP30.4EFN-512NN-MAD-1G0-NN-FW is an embedded panel PC with readily accessible connector panel. The ready contact boasts 4ms response time, 2ms bounce time, and 3ms dropout time. 50mm clearance around the device is needed for cable routing and cooling. Care should be taken during installation to avoid damage to the touchscreen. The device features an LC display, four front panel LEDs for indicating device errors and states, and three additional LEDs near the voltage supply connector. The panel PC runs on a 24VDC supply voltage, needing careful wiring to avoid malfunction. It can be operated directly with no configuration required. The product adheres to the 3K3 climatic class as per EN 60721-3-3, with absolute humidity limits between 1g/m3 and 25g/m3. It has IP 20 protection overall, with IP 65 for the front panel. The surrounding air must be free from harmful elements like metal vapors and salts.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

VEP30.4EFN-512NN-MAD-1G0-NN-FW

Type

Embedded Panel PC

Ready Contact Response Time

4ms

Ready Contact Bounce Time

2ms

Ready Contact Dropout Time

3ms

Installation

Connector panel or top side easily accessible

Clearance Required

50mm

Cutout Hole Diameter for Installation

5mm

Supply Voltage

24VDC

Operation

Can be operated directly without configuration

Front Panel LEDs

4

Key Operation

Only with fingers or special touch pen

PC Box LEDs

3 near the XS1 voltage supply connector

Display

LC display

Minimum Humidity

1g/m3

Maximum Humidity

25g/m3 without condensation

Climatic Class

3K3 (EN 60721-3-3)

Overvoltage Category

2

Contamination Level

2

Degree of Protection

IP 20 overall, IP 65 for front panel.
