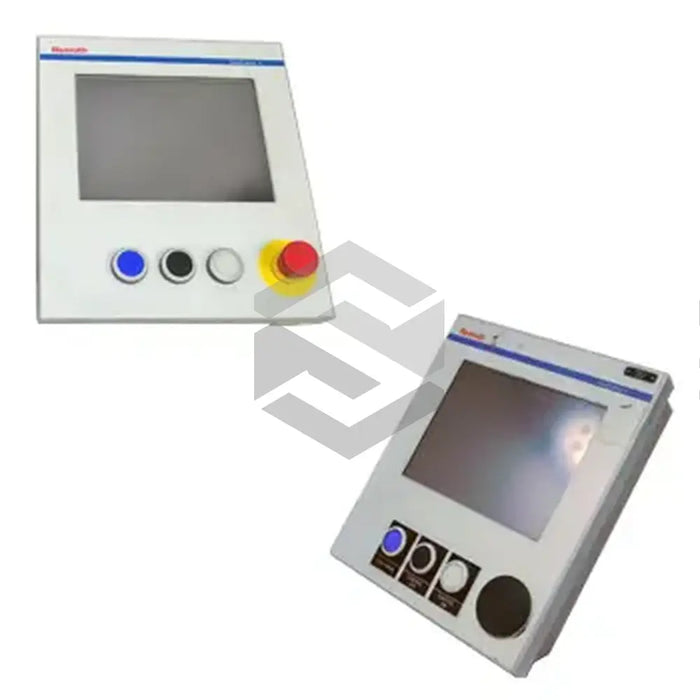

manufacturer image of VEP40.3CEN-256NN-MAD-128-NN-FW

VEP40.3CEN-256NN-MAD-128-NN-FW

by Bosch Rexroth Indramat
$12,827.32 - $12,827.32
$12,827.32
$12,827.32 - $12,827.32
$12,827.32
In Stock, Ships 1 - 2 Days
The VEP40.3CEN-256NN-MAD-128-NN-FW is a high-performance, 12.1” TFT display HMI panel from the Bosch Rexroth IndraControl VEP40 series. This industrial-grade panel is equipped with a 600 MHz Celeron M processor and uses the Windows CE 4.2 operating system. Features include two compact flash (CF) sockets, 128 MB of flash size and 256 MB of application memory. This HMI panel offers an SVGA display with 800 x 600 resolution and includes a touchscreen with an integrated virtual keyboard. Its inputs are one standard RS232 and two USB 2.0 ports, with a 24v DC power supply. Weighing approximately 3.8 kg and operating in humidity levels between 5 and 85 percent, it's both robust and versatile. It adheres to the IP 20 and IP 65 protection standards. The operating temperature range is 5 to 45 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: IndraControl VEP40
  • Model: VEP40.3CEN-256NN-MAD-128-NN-FW
  • Display Size: 12.1 inch
  • Processor: 600 MHz Celeron M
  • Operating System: Windows CE 4.2
  • Flash Memory Size: 128MB
  • Application Memory: 256MB
  • Display Type: Super VGA
  • Display Resolution: 800 x 600
  • Weight: 3.8 kgs
  • Humidity Level: 5 to 85 percent
  • Input Current: 1.5 Amps
  • Inrush current: 7 Amps
  • Connectivity: 1RS232 and 2 USB 2.0 ports
  • Voltage Supply: DC 24 volts
  • Protection Category(IP class): IP 20 and IP 65
  • Power Input: 53W
  • Voltage Range: DC 19 V to DC 30 V
  • Operating Temperature Range: 5 degree C to 45 degree C
