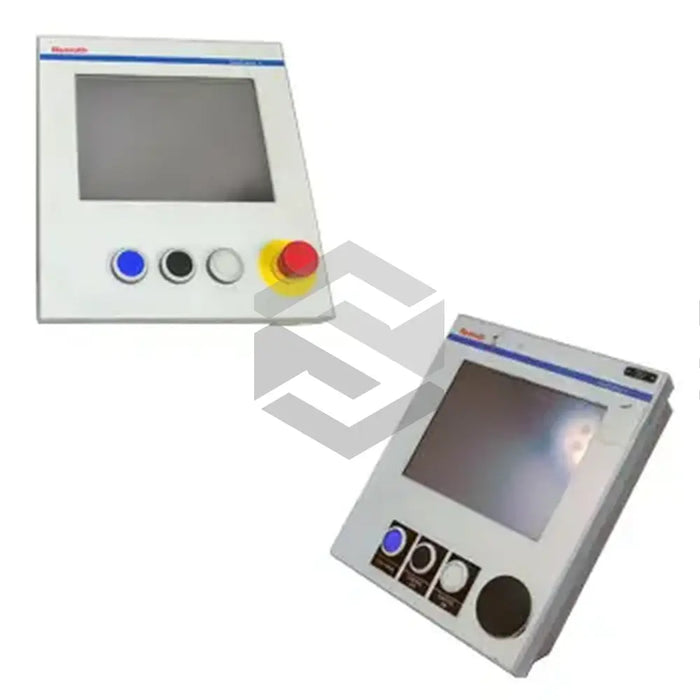

series image of VEP40.4DBU-512NC-MAD-1G0-NN-FW

VEP40.4DBU-512NC-MAD-1G0-NN-FW

by Bosch Rexroth Indramat
Request a quote
The VEP40.4DBU-512NC-MAD-1G0-NN-FW is a professional-grade terminal manufactured by Bosch Rexroth Indramat, designed for use in industrial control tasks. Containing both touchscreen and key operation features, it comes with a 12.1-inch display, comprehensive safety instructions, two type A USB ports, and a mounting kit. The terminal's 3V lithium battery boasts an impressive five-year lifespan on average. Its front panel is IP 65 protected according to IEC 529 and DIN 40 050, the display adheres to ISO 13406-2 Class 2 standards, and its maximum permissible air pressure is 2,000m above sea level per EN 61131-2. The terminal supports climatic classes 2K2 and 1K2 during transport and storage in accordance with EN 60721-3-2 and EN 60721-3-1 respectively. It operates at an input voltage range of 19V-30V, has a maximum input current of 1.5A 24VDC, and a peak inrush current of 7A for 6ms.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: VEP40.4DBU-512NC-MAD-1G0-NN-FW
  • Environment: Industrial
  • Terminal Line Code: 40
  • Battery: Lithium 3V
  • Battery Lifespan: 5 years
  • Maximum Air Pressure During Operation: 2,000m over sea level
  • Climatic Class during Transport: 2K2
  • Climatic Class during Storage: 1K2
  • Control Type: Touchscreen and Key operation
  • Protection Level: IP 65
  • Display: 12.1-inch touchscreen Class 2
  • USB Ports: Two Type-A
  • Short-term UPS: Capacitor Pack
  • Interface: P2-NN
  • Input Voltage: 19V to 30V
  • Maximum Input Current: 1.5A 24VDC
  • Maximum Inrush Current: 7A for 6ms
  • Maximum Power Consumption: 36W.
