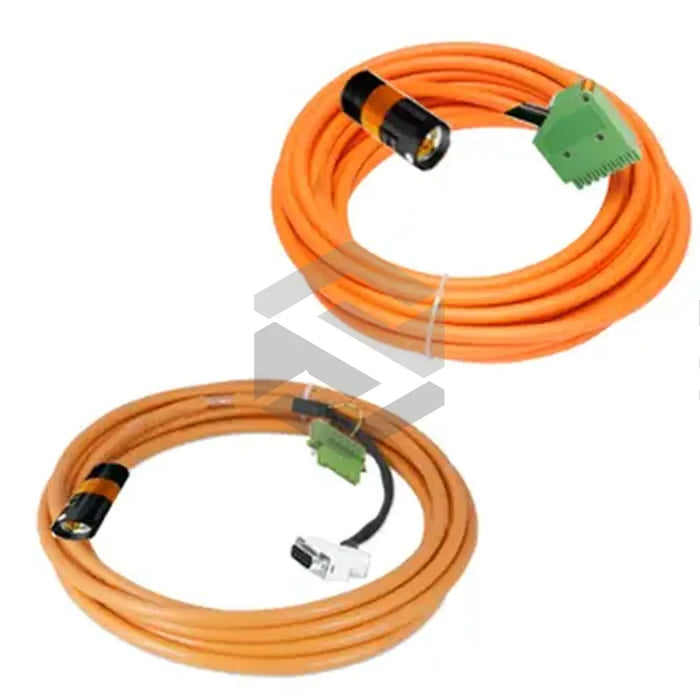

S image of VF-RA2474N-03

VF-RA2474N-03

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The VF-RA2474N-03, a product of Kollmorgen renowned for high-quality industrial components, is a device widely employed in many motion control systems to establish a resolver feedback connection. The VF feedback cable, with the outer diameter of 9.65 mm (with tolerance ±0.35 mm), must only be operated with modules approved by the manufacturer. Constructed from Thermoplastic elastomer and copper-fine-wire-core, the cable is insulated with polypropylene and contains 14 cores. It carries a voltage rating of 300V, bend radius of 96.5mm, and a temperature rating of 150 degrees Celsius. The VF-RA2474N-03, acclaimed for its high transmission speed and operational reliability, weighs 0.55kg and is silicone and halogen-free, flame and oil-resistant, and falls under pollution category 3. With plug protection of IP 66/67, the cable is outfitted with a 12-pin connector and can be installed at a maximum altitude of 2000m.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Model

VF-RA2474N-03

Usage

Resolver feedback connection

Outer Diameter

9.65 mm ±0.35 mm

Voltage Rating

300 V

Bend Radius

96.5 mm

Material

Thermoplastic elastomer

Wire Core Material

Fine wire and copper

Core Insulation Material

Polypropylene

Number of Wire Cores

14

Assembly Weight

0.551 kg

Temperature Rating

150 degree Celsius

Static Position Temperature Range

-30 to +80 degree Celsius

Bending Radius at Static Position

6 times the outer diameter

Tensile Strength

50 N/mm2

Silicon Free

Yes

Halogens Free

Yes

Flame and Oil Protection

Yes

Pollution Class

3

Protection Category

IP 66/67 (if plugged)

Connector Type

12 pins connector

Mounting Height

Up to 2000 meters above sea level
