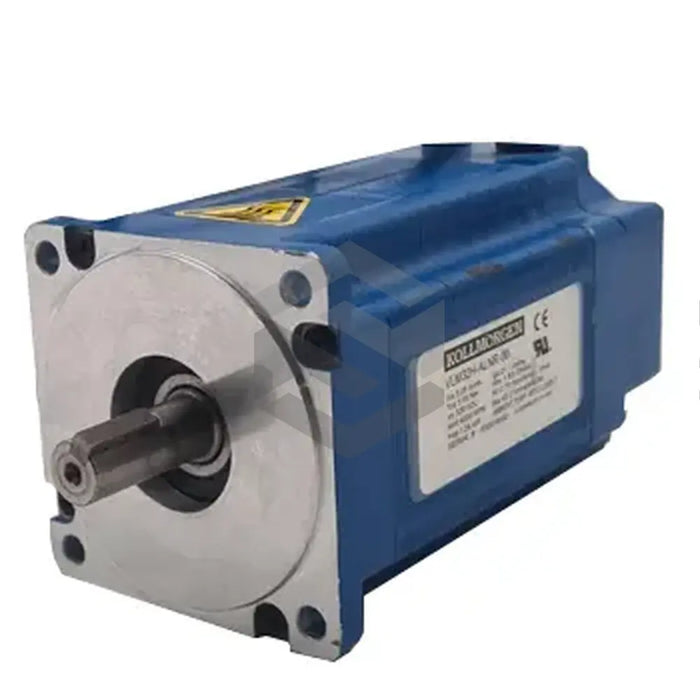

product image of a VLM23D-CKNR-30

VLM23D-CKNR-30

by Kollmorgen
Request a quote
The Kollmorgen VLM23D-CKNR-30 is a durable and efficient synchronous servo motor, proficient in delivering a torque of 0.6 Nm and 0.38 kW power at it's maximum speed of 6000 rpm. This model features a standstill torque of 1.18 Nm and a standstill current of 2.45 A. With an exquisite moment of inertia of 0.819 kgcm2, it's suited for applications requiring rapid acceleration/deceleration. The motor also has an IP 65 rated protective enclosure safeguarding the internal components from water, oil, and debris. The motor utilizes double coned collets reducing backlash and meets the NEMA guidelines for flange dimensions. It operates efficiently within a 95% relative humidity range with no condensation. Backed by brushless design and bearings rated for 20,000 service hours, it ensures minimal maintenance for users.
30 Day Warranty
Technical Specifications
  • Product Name: VLM23D-CKNR-30
  • Manufacturer: Kollmorgen
  • Motor Type: Synchronous motor
  • Top Speed: 6000 rpm
  • Torque at Top Speed: 0.6 Nm
  • Power at Top Speed: 0.38 kW
  • Mounting: IM B5
  • Flange Dimensions: NEMA guidelines compliant
  • Protection Category: IP 65
  • Moment of Inertia: 0.819 kgcm2
  • Peak Torque: 4.2 Nm
  • Peak Current: 9.8 A
  • Standstill Torque: 1.18 Nm
  • Standstill Current: 2.45 A
  • Humidity Tolerance: 95% relative humidity
  • Main Advantage: Low inertia motor
  • Service Life of Bearings: 20,000 hours.
